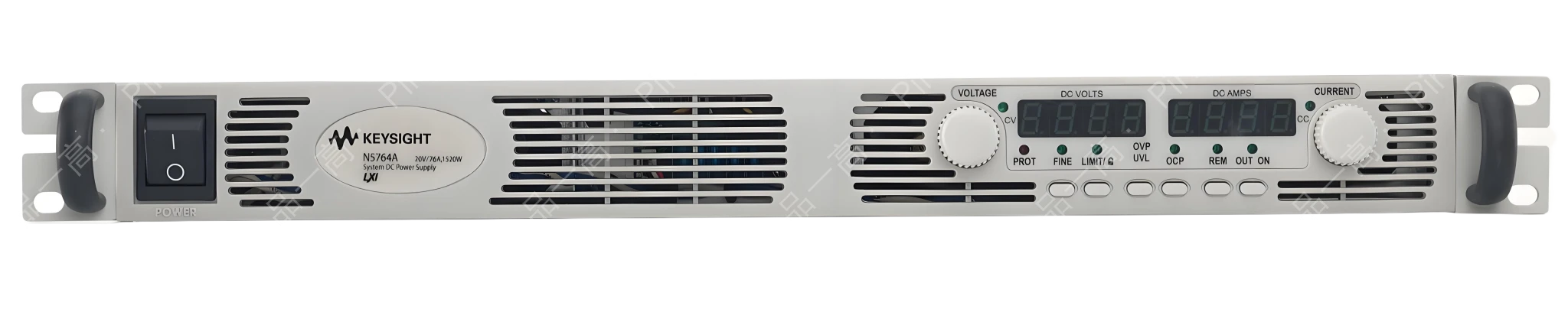

N5764A Power Supply
Manufacturers
Keysight
Other Recommendations
1520W High-Density Programmable Power Supply
⚡
1520W in 1U form factor (Product feature)
🌐
GPIB/LAN/USB/LXI (Product feature)
🔄
Analog/resistance programming (Product feature)
| Parameter | Value | Source |
|---|---|---|
| Output Voltage | 20V | Official specifications |
| Output Current | 76A | Official specifications |
| Output Power | 1520W | Official specifications |
Core Application Scenarios
High-Power Device Testing — Server/telecom equipment validation
Automated Test Systems — ATE integration with multi-interface control
Technical Adaptation for Rental Scenarios
Rack Space Optimization — 1U height saves 75% rack space
Remote Management — Network interfaces enable unmanned operation
Multi-Control Architecture
Features "Digital + Analog" hybrid control: Programmable via GPIB/LAN/USB/LXI for automated systems (remote control speed ≤100ms, based on interface specifications), with analog voltage (0-5V/0-10V) and resistance (0-5kΩ) inputs for manual control flexibility. Universal AC input (85-264VAC) ensures global deployment compatibility.
| Capability Dimension | N5764A | Standard PSU | Advantage |
|---|---|---|---|
| Power Density | 1520W/1U | 1000W/2U | 2x higher power density |
| Control Interfaces | 4 types (GPIB/LAN/USB/LXI) | 1-2 types | Flexible integration |
System Integration Workflow
Connection: Connect to DUT using high-current terminals
Configuration: Set voltage/current limits via front panel or remote interface
Operation: Monitor real-time power consumption via digital interfaces
Shutdown: Execute safe power-down sequence after testing
Thermal Operation Boundary
Output power derating required above 40°C ambient temperature (Based on product specifications). Mitigation: ① Maintain ambient temperature ≤35°C; ② Ensure minimum 2-inch side clearance for ventilation.
