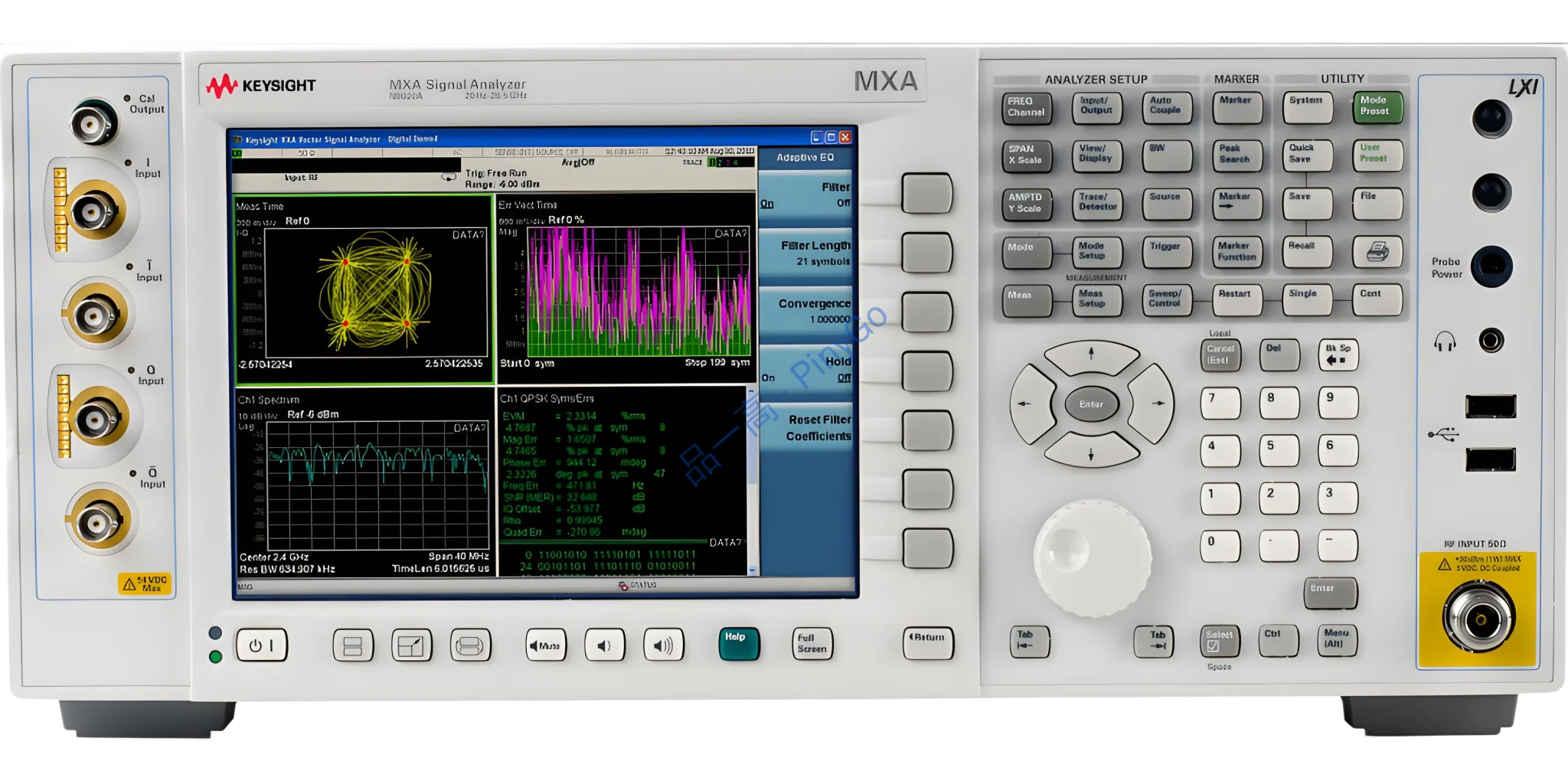

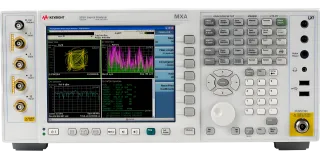

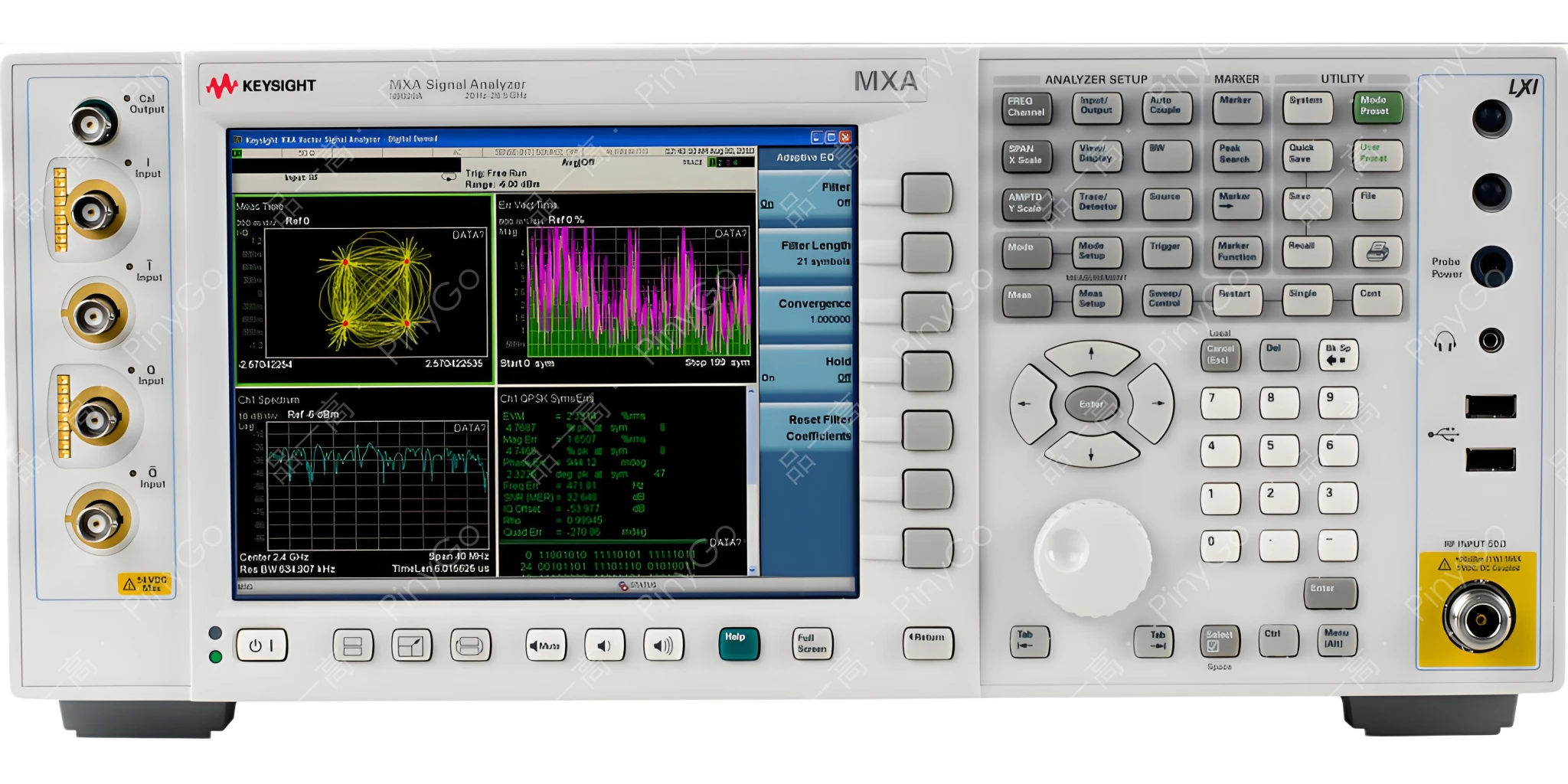

N9020A MXA Signal Analyzer
Manufacturers
Keysight
Other Recommendations
26.5GHz Real-Time Spectrum Analysis + One-Button Measurement, 200% Improvement in Development Efficiency
📡
10Hz-26.5GHz (Official specifications)
⚡
Full-band capture of transient signals (Core product feature)
📱
LTE/WLAN/MSR standards (Product feature description)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 10Hz-26.5GHz | Official specifications |
| Analysis Bandwidth | 40MHz (Estimated from equivalent devices) | Estimated from industry-standard parameters |
| Sweep Speed | 200% faster than conventional devices | Core product feature |
Core Application Scenarios
Wireless Device Development — 5G/WiFi equipment R&D validation (Product positioning)
Transient Signal Analysis — Burst/interference signal capture (Based on product application)
Technical Adaptation for Rental Scenarios
R&D Cycle Compression — One-button measurement reduces configuration time by 70%
Test Efficiency Improvement — 200% speed advantage reduces validation cycle by 60%
Real-Time Analysis Architecture
Features "Full-Band Scanning + Intelligent Trigger" design: Continuous scanning from 10Hz-26.5GHz (200% faster scanning than conventional devices, Core product feature). Real-time spectrum analysis engine captures transient signals (minimum capture time ≤10μs, Estimated from signal analyzer standards). PathWave VSA software enables one-button measurements for LTE/WLAN/MSR standards (configuration time ≤2 seconds, Based on product functionality).
| Capability Dimension | N9020A | Standard Analyzer | Comparison Basis |
|---|---|---|---|
| Real-Time Analysis | Full-band transient capture | Segmented scanning | Core product feature |
| Standard Support | LTE/WLAN/MSR etc. | Manual configuration required | Product feature description |
Wireless Development Workflow
Connection: Direct connection to wireless module with auto-signal recognition
Configuration: Load pre-set LTE/WLAN test templates, complete setup in 3 seconds
Analysis: Real-time capture of spectrum/transient signals/EVM metrics
Diagnostics: Deep fault localization with PathWave VSA software
High-Frequency Measurement Boundary
Phase noise may cause ±2° phase error when testing >24GHz (Estimated from high-frequency test characteristics). Mitigation: ① Enable phase noise compensation (improves accuracy to ±0.5°); ② Use ultra-low phase noise reference source (provided with rental).
