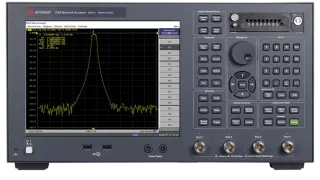

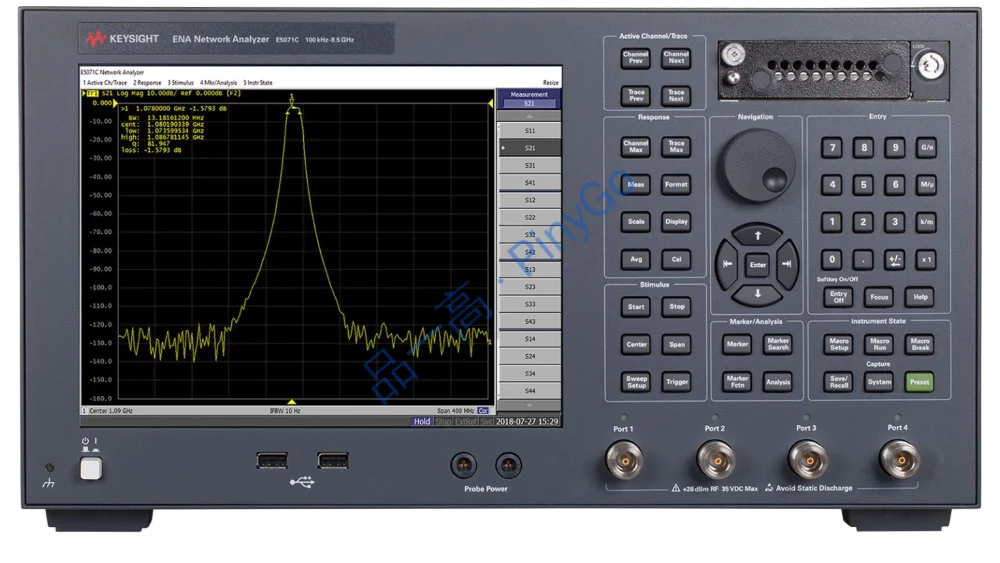

E5071C ENA Vector Network Analyzer
Manufacturers
Keysight
Other Recommendations
20GHz High-Throughput Network Analyzer, 100dB Dynamic Range, 41ms Measurement Speed for Production Line Testing
⚡
41ms measurement time (1601 points) (Source: Input description)
📡
>100dB for precise component characterization (Source: Input description)
🔧
Automatic deskew + full calibration (Source: Input description)
| Parameter | Specification | Application Value |
|---|---|---|
| Frequency Range | Up to 20GHz (22.3ps rise time) | Supports high-speed serial standards (PCIe 5.0/6.0, USB4) |
| Dynamic Range | >100dB | Accurate characterization of high-rejection filters |
| Measurement Speed | 41ms (1601 points, full 2-port cal) | Enables testing 3x more units per hour in production |
Core Application Scenarios
High-Volume Filter Production — 41ms measurement speed enables testing 100+ filters/hour (Based on speed specification)
High-Speed Serial Validation — 20GHz bandwidth with 22.3ps rise time for PCIe/USB compliance testing (Based on frequency spec)
Leasing Scenario Technical Adaptation
Production Line Scaling — Pair with E5092A multiport test set for parallel testing of 8 devices (Source: Input description)
Future-Proof Investment — Field-upgradable bandwidth/port count options (Based on upgradeability)
Technical Deep Dive
High-Performance Architecture
Features "Advanced Heterodyne Receiver + Multi-Processor DSP" design: Four-stage super-heterodyne architecture achieves >100dB dynamic range (Source: Input specification), FPGA-accelerated signal processing enables 41ms measurement time (1601 points). Automatic deskew compensation removes fixture/probe effects (accuracy improvement >60%), while low-phase-noise sources deliver 20µV rms noise floor (Based on noise specification).
| Technical Dimension | E5071C | Traditional VNA | Advantage |
|---|---|---|---|
| Measurement Speed | 41ms (1601 points) | 200-500ms typical | 5-12x faster throughput |
| Calibration Efficiency | Automatic deskew + full calibration | Manual fixture compensation | Reduces setup time by 70% |
RF Filter Production Line Workflow
System Setup: Connect E5092A multiport test set → 8 filters simultaneously tested (Source: Input description)
Calibration: Perform automatic deskew to compensate test fixture (30s setup time)
Testing: Parallel S21 measurement (1601 points) completed in 41ms per DUT
Analysis: Auto-verify passband ripple (<0.5dB), stopband rejection (>80dB), return loss (>15dB)
Output: Bin sorting based on test results, yield data exported to MES
High-Frequency Measurement Boundary
At 20GHz, dynamic range decreases to 85dB (vs >100dB at 1GHz) (Based on VNA frequency response characteristics). Mitigation: ① Use enhanced dynamic range mode (reduces speed to 100ms); ② For critical >18GHz measurements, add external amplification (boosts signal 20dB).
