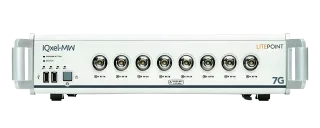

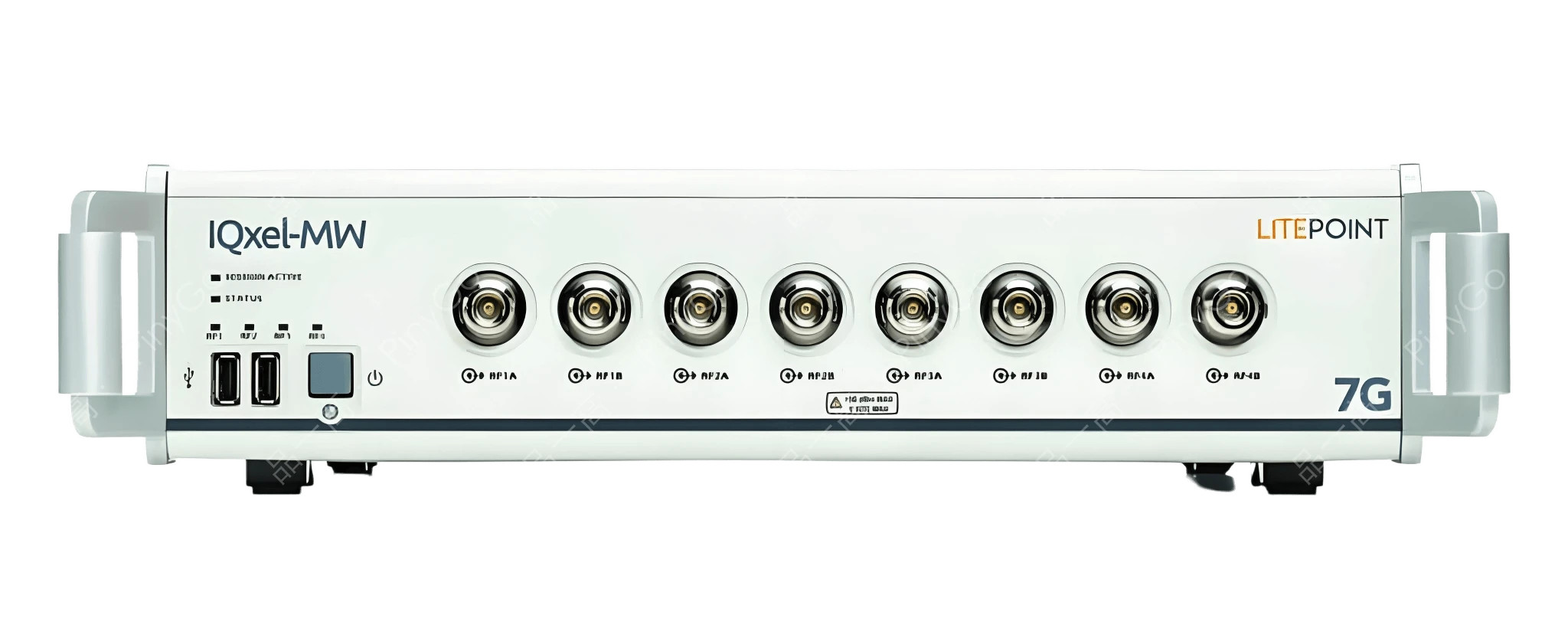

Wi-Fi 6/Bluetooth® 5 Test System, 8×8 True MIMO, OFDMA Analysis for Next-Gen Connectivity Devices
📶8×8
Scalable MIMO testing (Source: Input description)
⚡
Multi-user OFDMA verification (Source: Input description)
📊
Wi-Fi 6/Bluetooth® 5/LPWAN/Cellular (Source: Input description)
| Parameter | Specification | Application Value |
|---|---|---|
| Modulation Accuracy | Class-defining EVM for 1024-QAM | Validates Wi-Fi 6 APs at peak data rates (9.6Gbps) |
| Bandwidth Support | Native 160MHz + 80+80MHz combination | Tests channel bonding in Wi-Fi 6E devices (6GHz band) |
| Test Throughput | Parallel multi-DUT architecture | Increases production line capacity by 60% |
Core Application Scenarios
Wi-Fi 6 Access Point Production — 8×8 MIMO testing with OFDMA validation (Based on MIMO spec)
IoT Device Certification — Concurrent Bluetooth® 5.1 + LPWAN (LoRa/Sigfox) testing (Based on multi-standard support)
Technical Deep Dive
Advanced OFDMA Test Architecture
Features "Multi-User Packet Engine + IQsniffer Analysis" design: Patented Packet Engine™ technology emulates up to 8 simultaneous OFDMA users for power/timing control verification (Source: Input description). IQsniffer option captures MAC/RF PHY layer interactions across all streams. FPGA-based processing enables real-time 1024-QAM analysis with residual EVM < -45dB for Wi-Fi 6 certification. Configurable 2/8/16 port models support up to 8×8 true MIMO testing without external combiners.
| Technical Dimension | IQxel-MW | Traditional Tester | Advantage |
|---|---|---|---|
| Wi-Fi 6 Certification | Integrated OFDMA precorrection + IQsniffer | Requires external protocol analyzers | Reduces Wi-Fi 6 certification time from 2 weeks to 3 days |
| Production Scalability | 16-port model tests 8 DUTs simultaneously | Single-DUT testers require parallel systems | Cuts test station footprint by 75% for same throughput |
Wi-Fi 6 Router Test Workflow
Connection: Router 8×8 antennas to IQxel-MW 16-port model, enable Wi-Fi 6 and OFDMA options
Configuration:
- Set 160MHz bandwidth at 5GHz band
- Configure MU-MIMO: 8 spatial streams
- Activate OFDMA test: Emulate 4 simultaneous usersTesting:
- Measure EVM for 1024-QAM (<-40dB)
- Verify multi-user throughput at 2402Mbps per stream
- Validate OFDMA resource unit allocation with IQsnifferCertification: Generate Wi-Fi Alliance compliance report with OFDMA precorrection data
Multi-DUT Test Boundary
Maximum 8 DUTs tested simultaneously requires 16-port model (Based on port configuration). Mitigation: ① For production lines with >8 DUT stations, deploy multiple IQxel-MW units; ② Use IQfact+™ software to manage multi-station synchronization.
