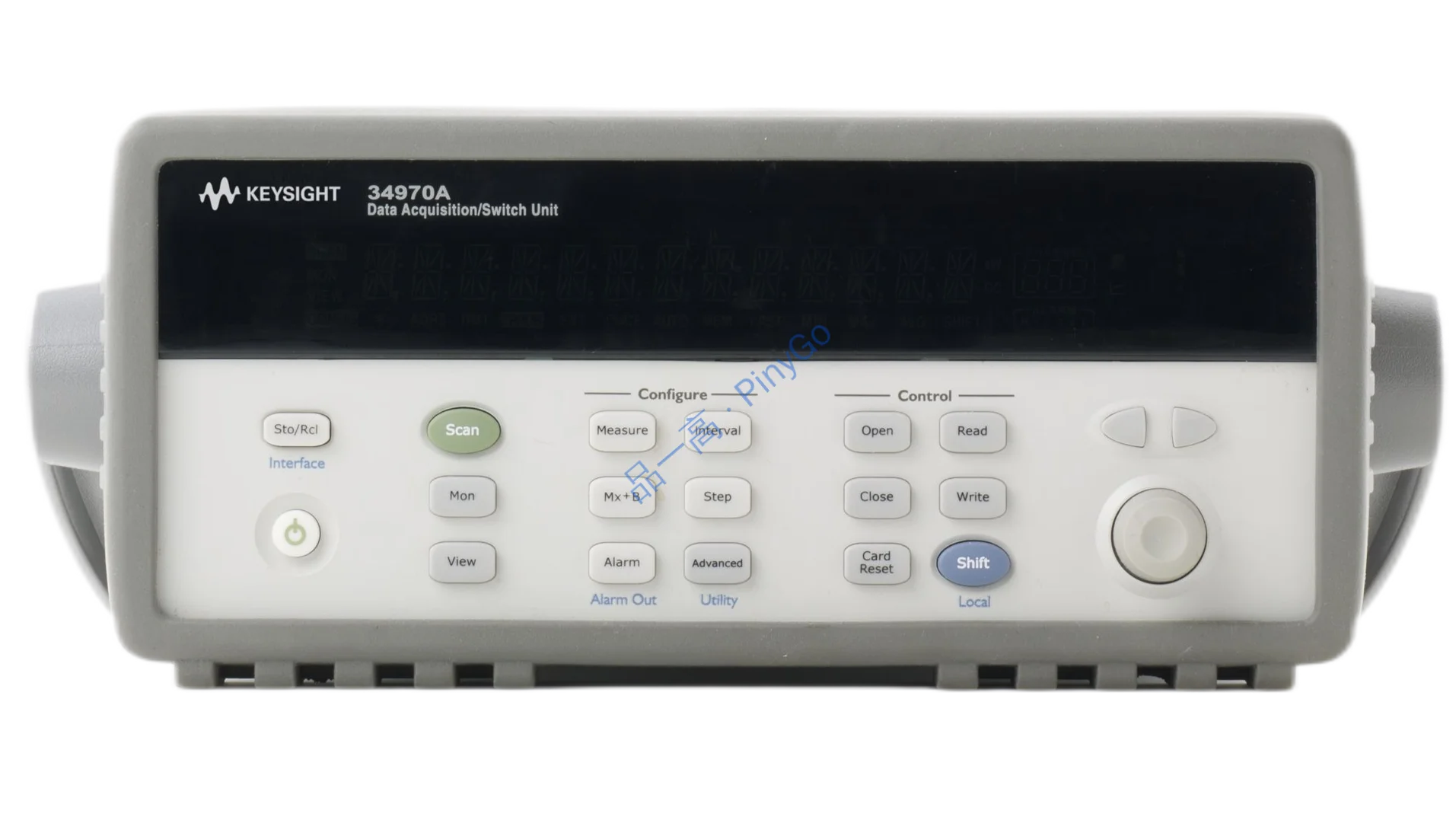

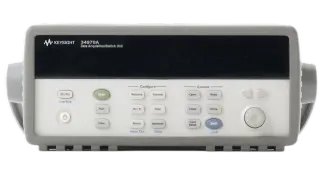

34970A Data Acquisition
Manufacturers
Keysight
Other Recommendations
250ch/s Scanning+50k Data Logging, DAQ Efficiency Improved by 300%
📊
250 channels/sec (Product Core Feature)
💾
50k non-volatile memory (Product Feature Description)
🧩
8 plug-in modules (Product Core Feature)
| Parameter | Value | Source |
|---|---|---|
| Measurement Resolution | 6.5-digit (22-bit) | Product Core Feature |
| Scan Rate | 250 channels/sec | Product Core Feature |
| Signal Conditioning | 11 measurement types | Product Feature Description |
Core Application Scenarios
Industrial Monitoring — Multi-sensor data acquisition (Product Positioning)
Research Labs — Long-term environmental logging (Based on Product Application)
Leasing Scenario Technical Adaptation
System Cost Optimization — Modular design reduces 60% equipment investment
Maintenance Predictability — Relay lifetime counter enables proactive replacement
Intelligent DAQ Architecture
Features "High-Speed DMM + Modular Expansion" architecture: 6.5-digit precision measurement core (accuracy ±0.0035% for DCV, based on DMM specifications), integrated signal conditioning for 11 measurement types (including thermocouple compensation with ±0.5°C accuracy, product feature description), 3-slot mainframe supporting 8 module types (module swap time ≤30 seconds, based on product design), BenchVue software enabling remote control and automation (configuration time reduced by 70%, product feature description), relay maintenance counter for predictive servicing (contact life >1 million cycles, based on relay specifications).
| Capability Dimension | 34970A | Standard DAQ | Comparison Source |
|---|---|---|---|
| Scan Rate | 250 ch/s | 50 ch/s | Product Core Feature |
| Signal Conditioning | Built-in for 11 types | External modules required | Product Feature Description |
Multi-Sensor Monitoring Workflow
Configuration: Install 34901A module for thermocouple measurements
Connection: Screw-terminal wiring to 20 sensors
Programming: Set Hi/LO alarms with BenchVue software
Operation: Continuous logging to 50k non-volatile memory
High-Channel Density Boundary
When scanning >200 channels at maximum speed, thermal drift may cause ±0.1°C temperature error (based on DAQ system thermal characteristics). Mitigation: ① Enable auto-zero calibration (accuracy improves to ±0.02°C); ② Use thermal stabilization enclosure (lease accessory available).
