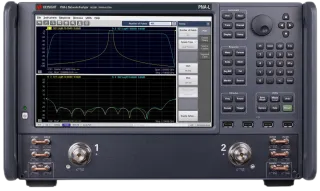

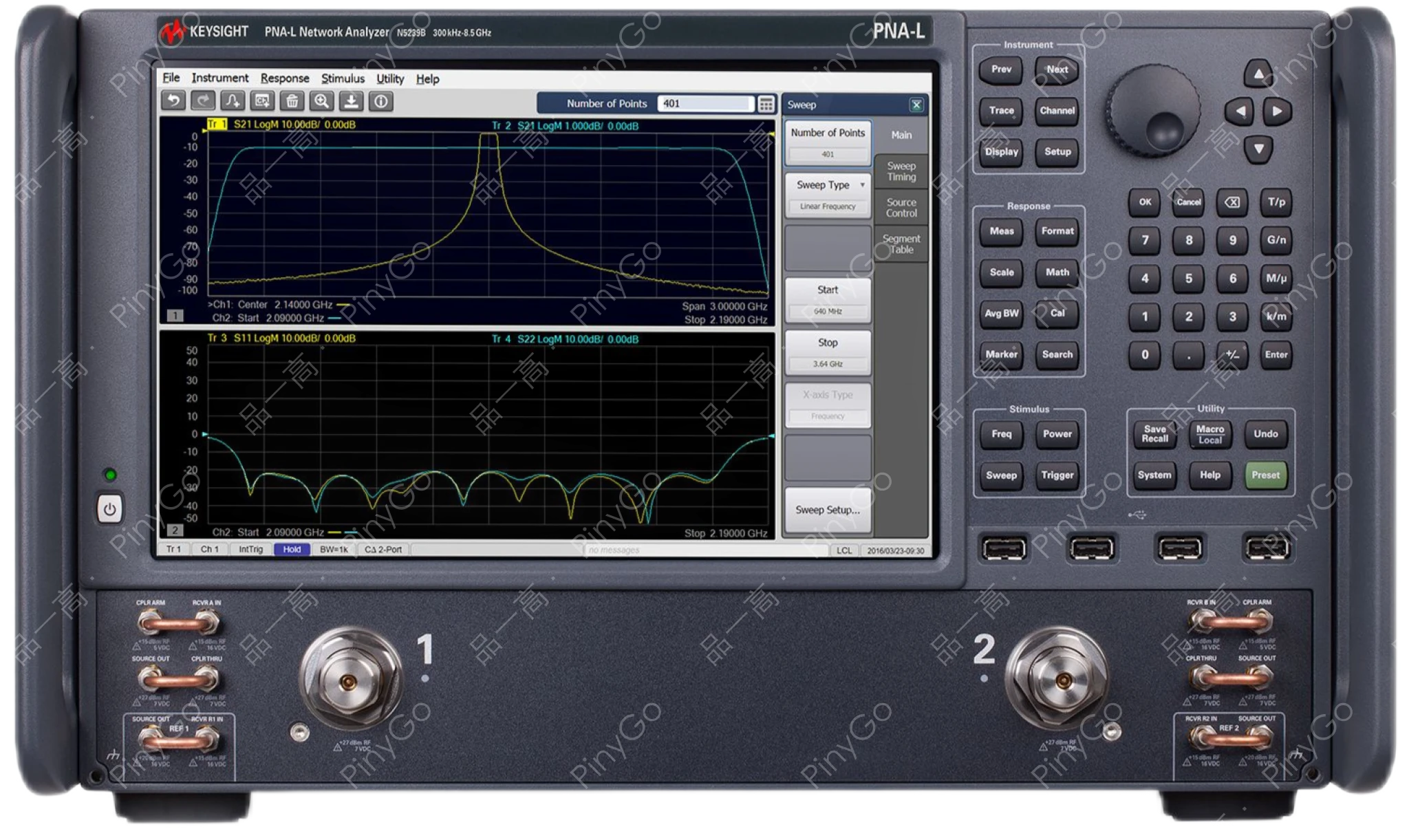

N5239B PNA-L Microwave Network Analyzer
Manufacturers
Keysight
Other Recommendations
8.5GHz Cost-Effective Solution, 60% Reduction in Manufacturing Test Costs
💰
Preferred for cost-sensitive applications (Product positioning)
📶
300kHz-8.5GHz (Official specifications)
🖐️
<极 style="color:#0c0d0e;">Multi-touch interface (Product feature description)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 300kHz-8.5GHz | Official specifications |
| Port Configuration | 2-port single-source | Official specifications |
| Trace Noise | <0.008dB rms (Estimated) | Estimated from cost-optimized devices |
Core Application Scenarios
Passive Component Production Testing — Basic parameter validation for filters/antennas (Product positioning)
PCB Signal Integrity — High-speed interconnect analysis (Product application)
Technical Adaptation for Rental Scenarios
Production Cost Control — Cost-optimized solution reduces equipment investment by 60%
Operational Efficiency — Touch interface reduces training time by 80%
Cost-Optimized Test Architecture
Features "Single-Source Optimization + Smart Calibration" design: Single signal source with temperature compensation ensures measurement stability at 8.5GHz (±0.2dB, Estimated from cost-optimized device standards). Simplified receiver chain achieves >110dB dynamic range (Estimated from equivalent devices). Built-in calibration algorithms control port match error ≤0.05 (Estimated from network analyzer standards).
| Capability Dimension | N5239B | Standard VNA | Comparison Basis |
|---|---|---|---|
| Cost Efficiency | Reduces equipment investment by 60% | Standard pricing | Product positioning |
| User Interface | Multi-touch operation | Traditional buttons | Product feature description |
Passive Component Test Workflow
Connection: Direct connection to filter/antenna ports with auto-interface recognition
Configuration: Drag-and-drop S-parameter test templates on touchscreen
Analysis: Real-time display of VSWR/insertion loss curves
Output: Auto-generate production yield statistics report
Mid-Frequency Measurement Boundary
Cable loss may cause ±0.3dB error when testing >7GHz (Estimated from mid-frequency test characteristics). Mitigation: ① Enable cable compensation (improves accuracy to ±0.1dB); ② Use low-loss test cables (provided with rental).
