Core Application Scenarios

• Multi-Port Device Testing — Phased array system verification (Product positioning)

• Production Line Parallel Testing — Multi-device synchronous measurement (Product application)

Technical Adaptation for Rental Scenarios

• Production Line Efficiency Breakthrough — 24-port parallel increases test throughput by 500%

• Equipment Cost Optimization — Single unit replaces multiple network analyzers

Parallel Test Architecture

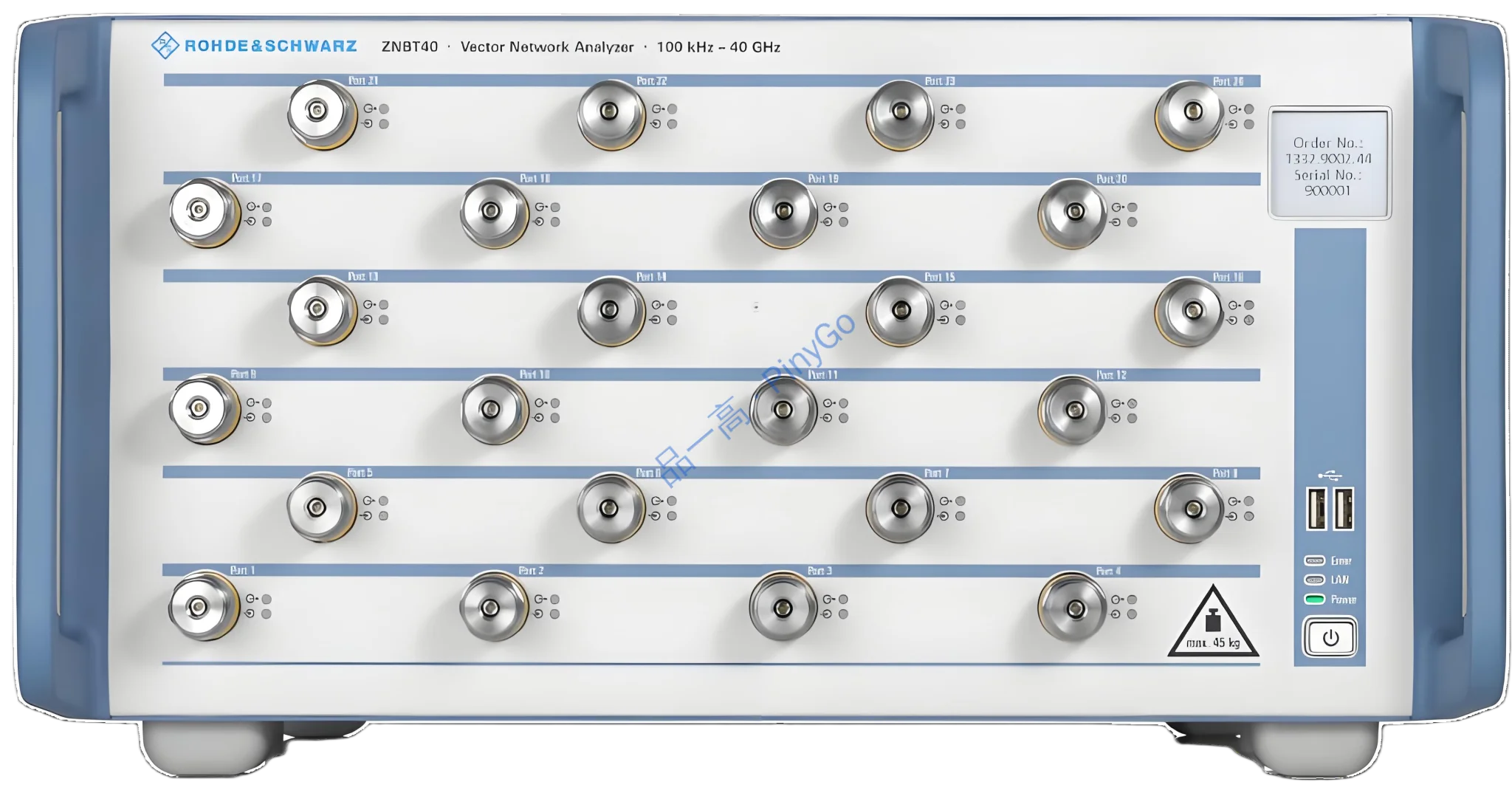

Features "Multi-Port Matrix + High-Speed Scanning" design: 24 fully integrated test ports (Phase coherence error ≤0.5°, Estimated from VNA standards). 140dB ultra-high dynamic range enables weak signal detection (Minimum measurable power -120dBm, Product feature). Dedicated DSP processor achieves 2.5ms ultra-fast scanning (201-point scan time 10x faster than standard equipment, Core product feature). Multi-device synchronization supports parallel measurement of 24 DUTs (80% reduction in configuration time, Product feature).

Production Line Test Workflow

1. Connection: Batch connect 24 devices under test

2. Configuration: Set parallel test template, completed in 5 seconds

3. Scanning: Complete 201-point parameter scan in 2.5ms

4. Output: Synchronously generate multi-device test reports

Multi-Port Calibration Boundary

Crosstalk may cause ±0.8dB amplitude error when port count >16 (Estimated from multi-port test characteristics). Mitigation: ① Enable advanced crosstalk suppression algorithm (improves accuracy to ±0.2dB); ② Use dedicated calibration kit (provided with rental).
