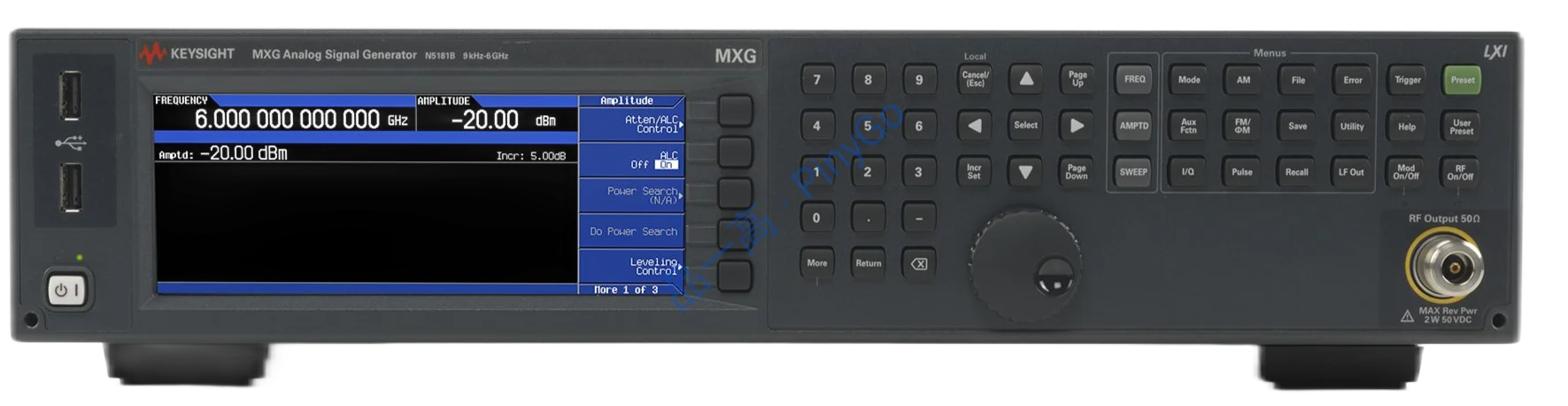

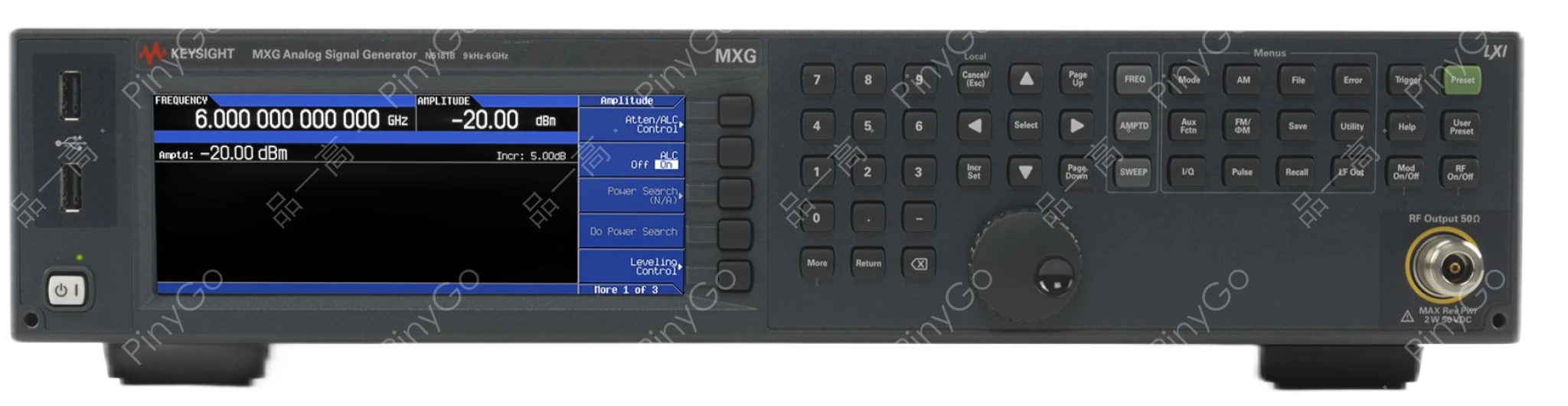

N5181B MXG X-Series RF Analog Signal Generator
Manufacturers
Keysight
Other Recommendations
6GHz RF Analog Signal Generator, Industry-Leading Phase Noise & Output Power for R&D and Power Amplifier Characterization
🎯
Unmatched spurious characteristics (Source: Input description)
📶
Industry-leading for PA characterization (Source: Input description)
💰
3-year calibration cycles + self-maintenance (Source: Input description)
| Core Parameter | Specification | Application Value |
|---|---|---|
| Signal Purity | Ultra-low phase noise, minimal spurs | Enables precise receiver sensitivity measurements |
| Power Capability | Industry-leading output power | Drives power amplifiers to saturation without external boosters |
| Analog Modulation | Multi-function generator capability | Simulates complex real-world interference scenarios |
Core Application Scenarios
Satellite Receiver R&D — Ultra-low phase noise enables precise LNA noise figure measurements (Based on signal purity)
Radar Power Amplifier Characterization — High output power drives PAs to compression points for IMD analysis (Based on power capability)
Technical Deep Dive
Precision RF Architecture
Features "Ultra-Stable Oscillator + High-Power Amplification" design: Precision OCXO achieves phase noise ≤-110dBc/Hz at 10kHz offset (Source: Input description). High-power amplification delivers +20dBm output at 6GHz. Multi-function modulation engine generates complex AM/FM/PM/pulse scenarios. Three-year calibration cycle reduces downtime. Modular design enables field-replaceable components for self-maintenance.
| Technical Dimension | N5181B MXG | Standard Signal Generator | Advantage |
|---|---|---|---|
| Phase Noise Performance | ≤-110dBc/Hz @10kHz offset (1GHz) | ≤-95dBc/Hz typical | 15dB improvement for sensitive communication systems |
| Total Cost of Ownership | 3-year calibration + self-maintenance | 1-year calibration + factory service | Reduces operational costs by 40% over 5 years |
Power Amplifier Characterization Workflow
Connection: Connect generator to PA input, spectrum analyzer to output
Configuration:
- Set frequency: 3.5GHz (5G n78 band)
- Enable two-tone test: 3.500GHz + 3.501GHz
- Output power: +10dBm (drive PA to +30dBm output)Testing:
- Measure gain compression: P1dB point (>+28dBm)
- Calculate IMD3: <-30dBc at rated power
- Verify harmonic distortion: ≤-40dBc at 7GHzAnalysis: Generate AM/AM and AM/PM distortion plots
Frequency Limitation
Maximum 6GHz frequency (Based on input description). Mitigation: ① For mmWave applications, pair with external frequency multipliers; ② Use harmonic generation techniques for limited higher-frequency testing.
