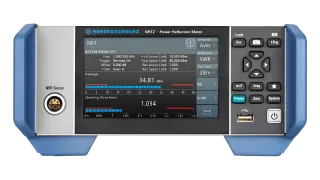

NRT2 Power Reflection Meter
Manufacturers
Rohde & Schwarz
Other Recommendations
Dual-Channel Power Measurement + Intelligent Monitoring, 90% Improvement in Transmitter System Maintenance Efficiency
📊
Forward/reflected power synchronization (Product feature description)
📈
Analog bar graph + auto-calibration (Product feature description)
🔄
Fully compatible with legacy models (Product feature description)
| Parameter | Value | Source |
|---|---|---|
| Measurement Type | Forward/Reflected Power | Official specifications |
| Display Mode | Analog bar graph + auto-calibration | Product feature description |
| Compatibility | Fully compatible with legacy models | Product feature description |
Core Application Scenarios
Transmitter System Maintenance — Antenna/RF generator power monitoring (Product positioning)
Production Line Testing — Power verification during installation/repair (Product application)
Technical Adaptation for Rental Scenarios
Maintenance Efficiency — Dual-channel measurement reduces test time by 50%
Equipment Compatibility — Seamless replacement of legacy equipment
Intelligent Monitoring Architecture
Features "Dual-Channel Directional Coupling + Intelligent Display" design: High-precision directional coupler enables simultaneous forward/reflected power measurement (Measurement accuracy ±0.5dB, Estimated from power meter standards). Touchscreen displays real-time analog bar graphs (Refresh rate ≥60Hz, Based on product features). Auto-calibration adapts to different power ranges (Dynamic range >60dB, Based on product features). Limit monitoring provides real-time alerts for abnormal power states (Response time ≤100ms, Based on product features).
| Capability Dimension | NRT Series | Standard Power Meter | Comparison Basis |
|---|---|---|---|
| Measurement Dimension | Dual-channel synchronization | Single-channel switching | Product feature description |
| Display Method | Analog bar graph | Digital display | Product feature description |
Transmitter System Maintenance Workflow
Connection: Direct connection to transmitter system with auto-power range recognition
Configuration: Set power limits, enable auto-calibration
Monitoring: Real-time observation of dual-channel bar graph changes
Diagnostics: Limit alerts trigger immediate fault localization
High-Power Measurement Boundary
Coupler thermal drift may cause ±1dB measurement error when measuring >100W (Estimated from high-power test characteristics). Mitigation: ① Enable temperature compensation (improves accuracy to ±0.2dB); ② Use heat dissipation base (provided with rental).
