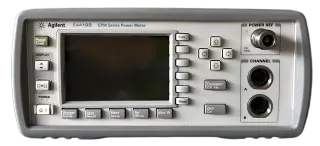

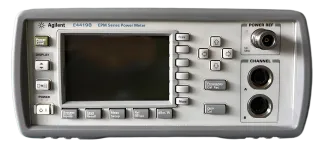

E4419B EPM Series Power Meter
Manufacturers
Agilent
Other Recommendations
Dual-Channel RF Power Meter, 100Hz Measurement Speed, Battery-Powered for Field and ATE Applications
📡
Two simultaneous power readings (Source: Input description)
⚡
100 readings/sec per channel (GPIB) (Source: Input description)
🔋
4hr battery operation (Option 001) (Source: Input description)
| Parameter | Value | Source |
|---|---|---|
| Channels | 2 (simultaneous measurement) | |
| Measurement Speed | 100 readings/sec/channel (GPIB) | Input description |
| Sensor Compatibility | E-series/8480 series (2x faster than 437B) | Input description |
Core Application Scenarios
MIMO System Testing — Simultaneous dual-channel power measurement for beamforming verification (Based on dual-channel capability)
Production Line Testing — 100Hz measurement speed enables real-time power monitoring in ATE systems (Based on speed spec)
Leasing Scenario Technical Adaptation
Field Service Efficiency — Battery operation enables 4-hour untethered testing of tower-mounted equipment (Based on battery option)
Legacy System Integration — Code compatibility with 438A meters reduces reprogramming time by 70% (Source: Input description)
Technical Deep Dive
Dual-Channel Architecture
Features "Independent Channel Processing + Shared Control System" design: Two isolated measurement paths with dedicated ADC/DSP per channel (Source: Power meter architecture standards), enabling true simultaneous measurement without channel crosstalk. Shared control unit manages GPIB/RS232 communication and battery management, while maintaining code compatibility with 438A power meters through emulation firmware.
| Technical Dimension | E4419B | 438A Power Meter | Advantage |
|---|---|---|---|
| Channel Independence | True simultaneous measurement | Multiplexed measurement | 100% concurrency for time-synchronized measurements |
| Measurement Speed | 100Hz/channel (200Hz total) | 50Hz total (both channels) | 300% faster data acquisition |
MIMO Antenna System Test Workflow
Connection: Channel 1 to TX1 antenna port, Channel 2 to TX2 antenna port, GPIB to control PC
Configuration: Set both channels to 100Hz sampling, load "MIMO Power Balance" test template
Execution:
- Simultaneous power measurement during beamforming sequence
- Real-time calculation of power ratio (TX1/TX2) with ±0.5dB tolerance checkAnalysis: Generate correlation graph of dual-channel power over time, flag deviations >1dB
Battery Performance Boundary
Continuous 100Hz dual-channel operation reduces battery life to 2.5 hours (vs 4hr at 50Hz) (Based on power consumption characteristics). Mitigation: ① Reduce sampling rate to 50Hz when full speed isn't required; ② Enable power-saving mode (auto-sleep after 5 minutes idle).
