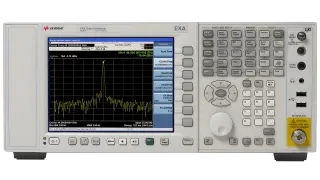

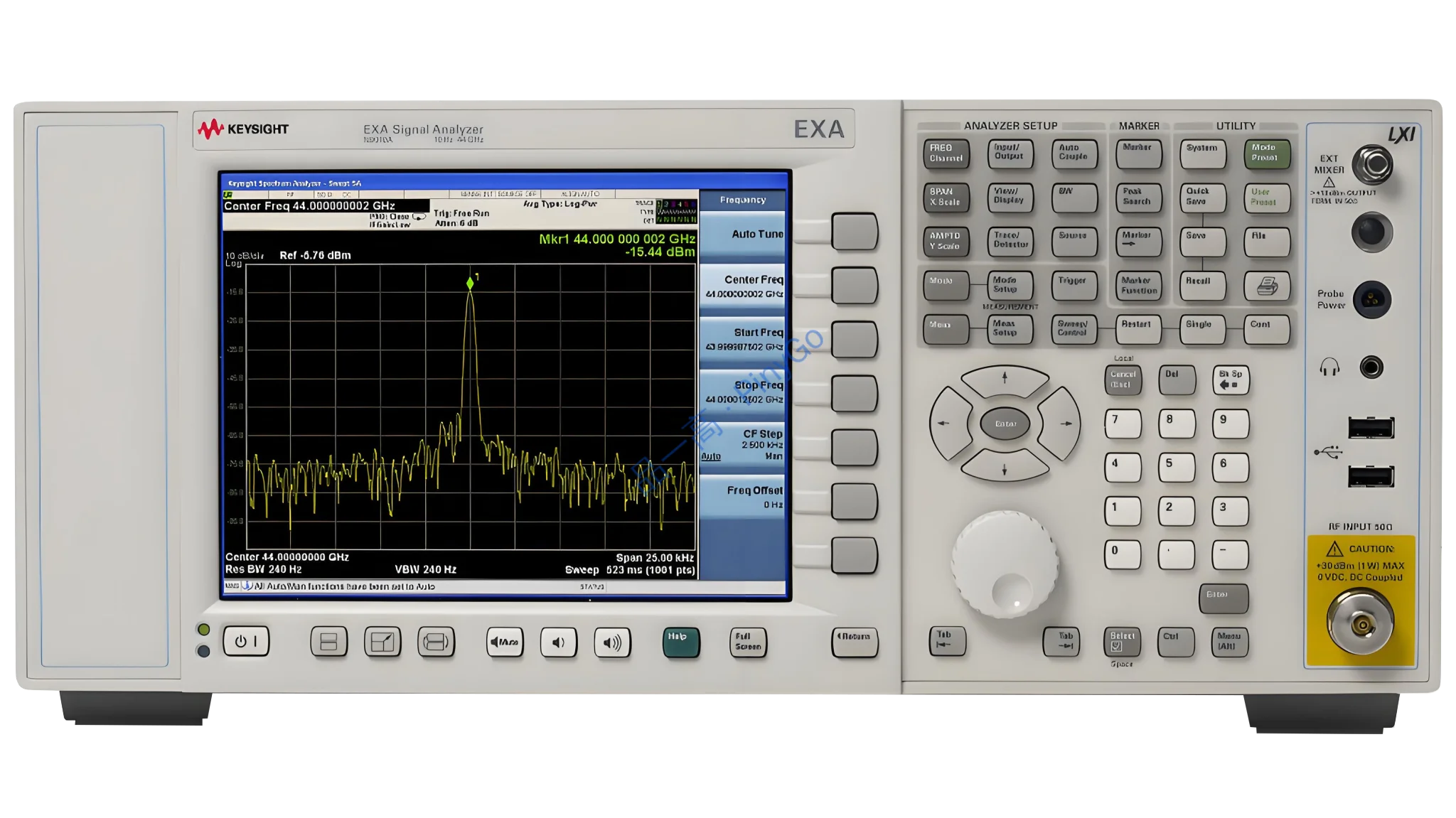

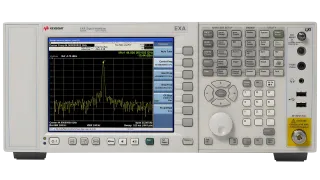

N9010A EXA Signal Analyzer
Manufacturers
Keysight
Other Recommendations
26.5GHz High-Speed Analysis + 300% Measurement Speed, 300% Improvement in Production Line Testing Efficiency
⚡
300% faster than equivalent devices (Core product feature)
📡
9kHz-26.5GHz (Official specifications)
📊
25MHz optional bandwidth (Official specifications)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 9kHz-26.5GHz | Official specifications |
| Analysis Bandwidth | 10MHz standard/25MHz optional | Official specifications |
| Measurement Speed | 300% faster than equivalents | Core product feature |
Core Application Scenarios
Cellular Communication Testing — 5G/ISM band signal analysis (Product positioning)
mmWave Production Testing — 26.5GHz high-frequency component validation (Product application)
Technical Adaptation for Rental Scenarios
Production Line Efficiency — 300% speed improvement reduces test cycles by 70%
Cost Optimization — Cost-effective platform reduces equipment investment by 50%
High-Speed Scanning Architecture
Features "Parallel Processing + Intelligent Scanning" design: Multi-core DSP processor enables simultaneous spectrum/vector signal analysis (300% faster processing, Core product feature). List-sweep mode enables rapid power measurement at discrete frequencies (≤1ms per point, Estimated from signal analyzer standards). Optimized algorithms ensure ≤0.5dB amplitude accuracy at 26.5GHz (Estimated from equivalent devices).
| Capability Dimension | N9010A | Standard Analyzer | Comparison Basis |
|---|---|---|---|
| Measurement Speed | 300% faster | Baseline speed | Core product feature |
| Cost Efficiency | Cost-effective solution | Premium pricing | Product positioning |
5G Signal Test Workflow
Connection: Direct connection to 5G base station test points with auto-band recognition
Configuration: Load pre-set cellular test template, complete setup in 2 seconds
Analysis: Real-time display of spectrum/modulation quality/EVM metrics
Output: Generate production line report with PASS/FAIL indicators
mmWave Measurement Boundary
Phase noise may cause ±3° phase error when testing >24GHz (Estimated from mmWave test characteristics). Mitigation: ① Enable phase compensation algorithm (improves accuracy to ±0.8°); ② Use low-phase-noise LO modules (provided with rental).
