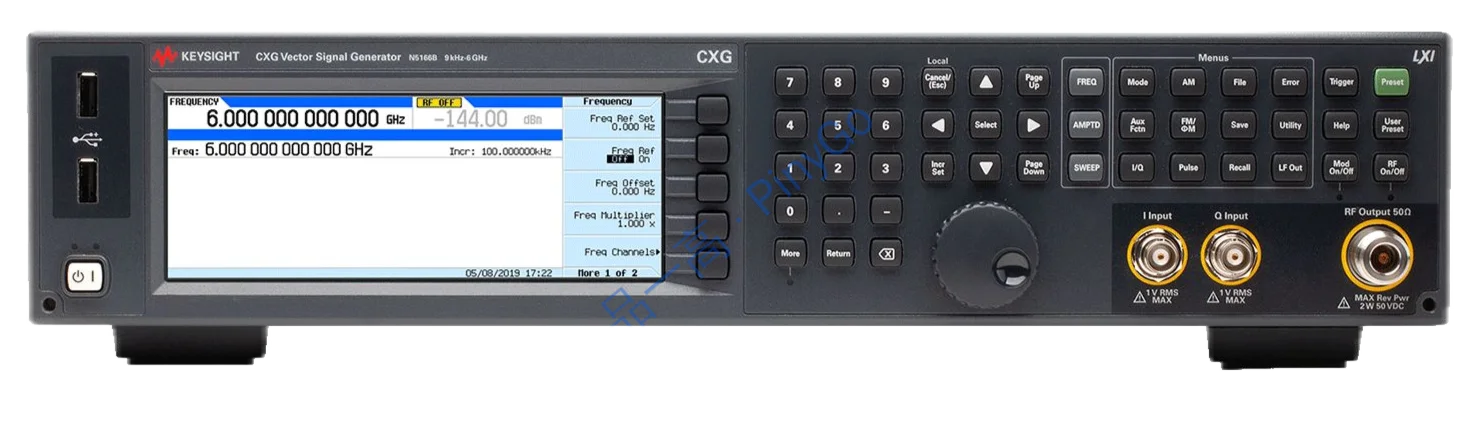

N5166B CXG RF Vector Signal Generator
Manufacturers
Keysight
Other Recommendations
9kHz-6GHz Vector Signal Generator, 120MHz Modulation Bandwidth for IoT/General-Purpose Device Testing
📡6GHz
9kHz-3GHz/6GHz models (Source: Input description)
📊120MHz
RF bandwidth for complex signals (Source: Input description)
🔧
Field-replaceable modules + low-cost repairs (Source: Input description)
| Core Parameter | Specification | Application Value |
|---|---|---|
| Frequency Coverage | 9kHz-6GHz (option-dependent) | Tests sub-GHz IoT sensors to 5GHz Wi-Fi devices |
| Signal Library | Standards-compliant vectors (LTE-M/NB-IoT/Bluetooth®/WLAN) | Pre-validated signals reduce test setup time by 70% |
| Troubleshooting Capability | Real-time signal monitoring + error injection | Isolates receiver faults in wireless communication chains |
Core Application Scenarios
IoT Sensor Validation — Generate LoRaWAN signals at 868MHz to test receiver sensitivity (Based on frequency range)
Bluetooth® LE Receiver Test — Verify packet error rate under interference using error injection (Based on troubleshooting capability)
Technical Deep Dive
Modular Signal Generation Architecture
Features "Direct Digital Synthesis + Software-Defined Modulation" design: Baseband generator creates signals up to 120MHz bandwidth (Source: Input description). Frequency extension modules cover 9kHz-6GHz via upconverters. Pre-loaded standards library (LTE-M/NB-IoT/Bluetooth® 5.x) with parametric editing (adjust EVM, frequency error). Real-time monitoring captures signal anomalies during receiver testing. Field-replaceable RF/power modules enable user-level maintenance.
| Technical Dimension | This Generator | Traditional VSG | Advantage |
|---|---|---|---|
| Frequency Flexibility | 9kHz-6GHz with modular upconverters | 100kHz-6GHz typical (excludes sub-kHz) | Tests ultra-low-frequency IoT sensors (e.g., 40kHz water meters) |
| Maintenance Cost | User-replaceable modules + 3-year warranty | Factory service required, high repair fees | Reduces downtime by 80% with $200 avg. module replacement |
Bluetooth® Receiver Sensitivity Workflow
Connection: Connect generator RF output to DUT receiver, PC via USB for control
Configuration:
- Select Bluetooth® LE 1M PHY signal
- Set frequency: 2.402GHz (Channel 37)
- Enable error injection: Add 5% random bit errorsTesting:
- Measure PER vs. input power: Sweep from -20dBm to -90dBm
- Determine sensitivity: Power level at PER=30% (e.g., -92dBm)
- Verify robustness: Test with interferer at 2.48GHz (-20dBm)Analysis: Generate bathtub curve report, flag compliance with Bluetooth® spec
Bandwidth Limitation Note
120MHz modulation bandwidth limits testing of ultra-wideband signals (e.g., Wi-Fi 7 320MHz) (Based on spec). Mitigation: ① For UWB applications, use external I/Q inputs; ② Test in segments (e.g., 0-120MHz, 120-240MHz) and combine results.
