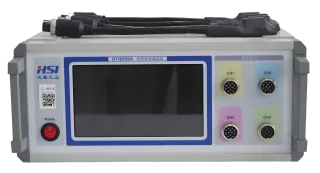

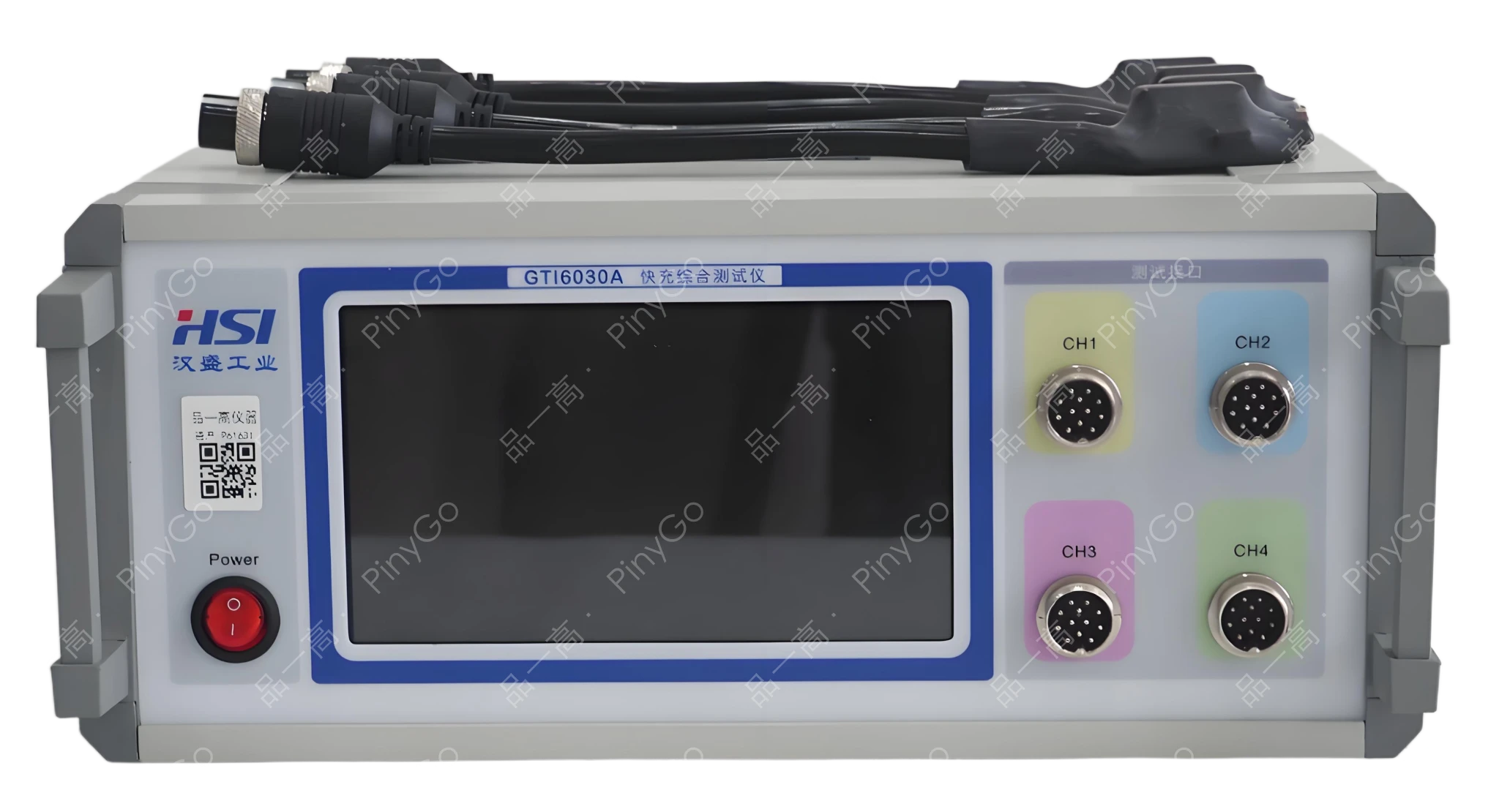

CTI6030 Fast Charging Tester
Manufacturers
汉盛工业
Other Recommendations
4-Channel Parallel Testing (60V/10A/150W×4), Integrated Oscilloscope, Multi-Port Power Distribution Analysis for Fast Charger Production
🔌×4
60V/10A/150W per channel (Source: Input description)
📈
Ripple peak-to-peak measurement (Source: Input description)
🧩
Shared/independent power schemes (Source: Input description)
| Core Parameter | Specification | Application Value |
|---|---|---|
| Load Configuration | 4 independent channels, 60V/10A/150W each | Parallel testing of 4-port chargers, 4x efficiency |
| Measurement Capability | Voltage, current, D+/D-, ripple p-p (oscilloscope) | Single-device electrical + waveform analysis |
| Protocol Analysis | PDO message comparison, VDM verification | Ensures fast-charge compatibility, reduces interoperability issues |
Core Application Scenarios
Multi-Port Fast Charger Production — 4-channel parallel testing + power distribution analysis for 4-port 65W/100W shared-power adapters
High-Voltage Charger R&D — 60V support for industrial power supplies, integrated oscilloscope analyzes high-frequency ripple (<200mV p-p)
Technical Deep Dive
Core Technology Architecture
Features "Quad Independent Load System + Integrated Oscilloscope + Protocol Engine" architecture:
1. Load Layer: Each channel equipped with 60V/10A wide-range electronic load (SiC power devices), independent CC/CV mode switching, ±10mA sync accuracy
2. Measurement Layer: Integrated 100MHz oscilloscope (1GS/s sampling), captures ripple p-p (1mV resolution), combines with precision voltage/current measurement
3. Protocol Layer: Built-in PD3.1/QC5 libraries, real-time PDO comparison (<1% error), VDM verification, traces handshake failures
| Technical Dimension | GTI6030H | Previous Model (e.g., GTI6028) | Core Advantage |
|---|---|---|---|
| Multi-Port Testing | 4-channel parallel + power distribution analysis | Single-channel, no distribution analysis | 4x efficiency for multi-port chargers |
| Waveform Analysis | Built-in oscilloscope (ripple p-p measurement) | Requires external oscilloscope | Single-device complete parameter testing |
4-Port 100W Shared Power Adapter Production Test Workflow
System Setup: Tester fixed on production line, 4 outputs connected to adapter ports via Type-C cables, AC input to grid simulator, oscilloscope probes to outputs
Configuration: 7" touchscreen loads "4-Port 100W Shared Power" template → auto-configures:
- Protocol: PD3.0 20V/5A request per port, PDO comparison
- Load: Single-port 100W → dual-port 50W+50W → quad-port 25W×4
- Waveform: Measures ripple p-p at 10A load (<200mV)Execution:
- Parallel testing: Simultaneous 4-port loading, records voltage (20V±1V), current (5A±0.2A), power distribution error (<5%)
- Protection: Sequential OCP (11A) → short-circuit (<10ms response)Output: Generates PDF report with 4-port parameters, power distribution curves, ripple waveforms, LAN upload to MES, highlights failures
Usage Precautions
1. Full 4-channel load (10A/channel): Use ≥2.5mm² power cables (40A total), ensure ventilation (add cooling fans)
2. Ripple measurement: Use ground spring probes, keep away from AC lines to avoid EMI interference
3. Predefine power distribution rules in templates (e.g., shared/independent), auto-compare actual vs preset values (±5% tolerance)
