Core Application Scenarios

• Electronic Design Verification — Long-duration signal capture (Product positioning)

• Teaching Experiments — Fundamental measurement principle demonstration (Product application)

Technical Adaptation for Rental Scenarios

• R&D Efficiency Breakthrough — 5M memory improves long-signal analysis capability by 200%

• Equipment Cost Optimization — Upgradable bandwidth saves 60% equipment replacement costs

Intelligent Analysis Architecture

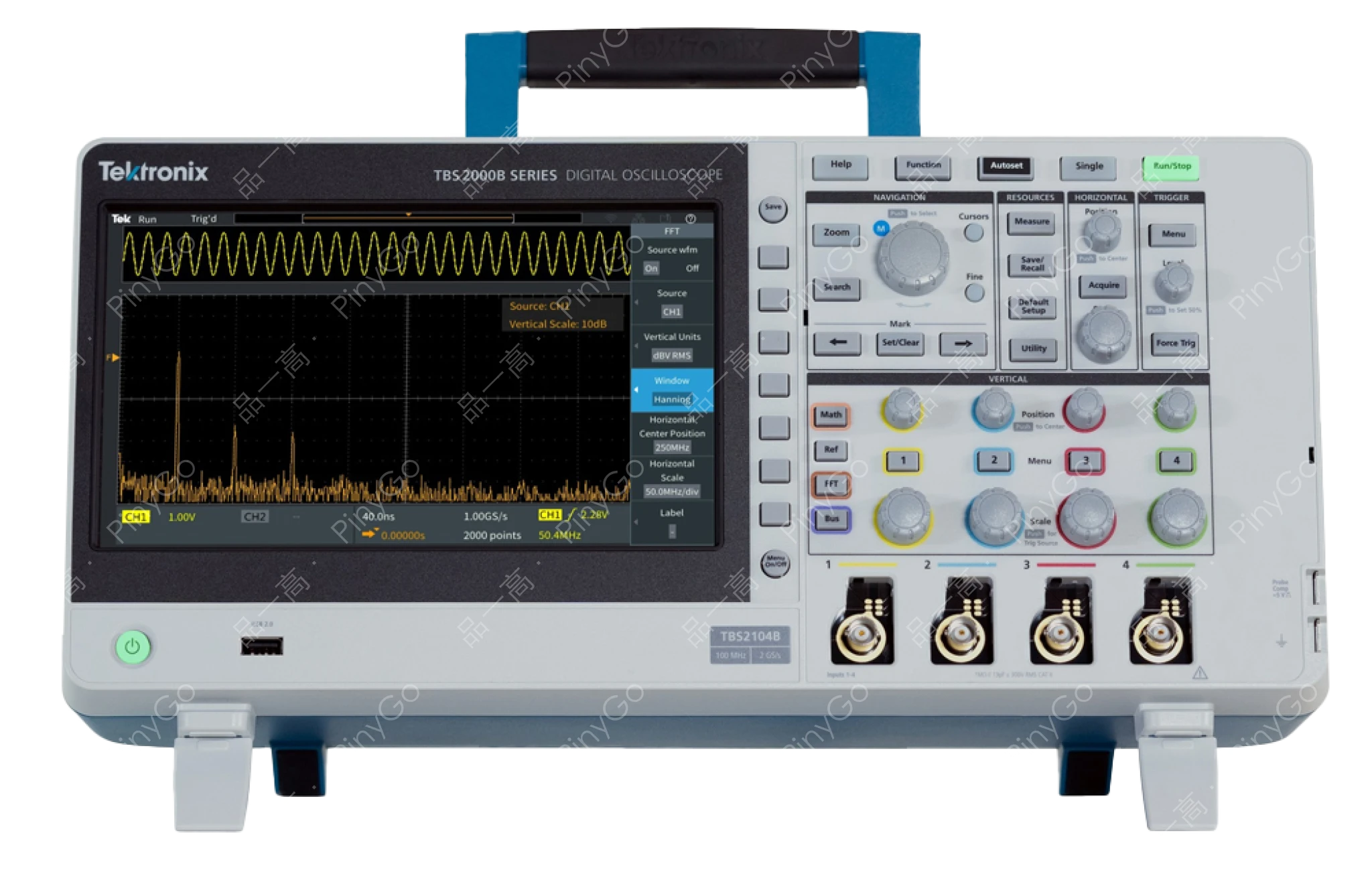

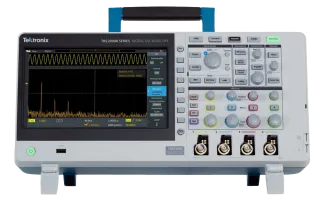

Features "Large Screen Display + Deep Memory" design: 9-inch display (50% larger display area, Product feature). 5M point record length enables long-duration signal capture (Acquisition time >10s, Estimated from oscilloscope standards). Low-noise frontend design improves signal integrity (SNR improved by 40%, Core product feature). TekVPI™ probe interface supports auto-scaling and unit setting (Probe recognition time ≤1 second, Product feature). WiFi/Ethernet connectivity enables remote signal sharing (Transfer rate >100Mbps, Estimated from interface specifications).

Signal Analysis Workflow

1. Connection: TekVPI probe auto-recognition, completes configuration in 1 second

2. Capture: 5M record length acquires long-duration signals

3. Analysis: Search and mark function locates key events

4. Sharing: Remote waveform output via WiFi/Ethernet

High-Frequency Signal Boundary

Sampling rate limitations may cause ±2% timing error when measuring >150MHz (Estimated from oscilloscope standards). Mitigation: ① Enable equivalent sampling mode (improves accuracy to ±0.5%); ② Use high-bandwidth probes (provided with rental).
