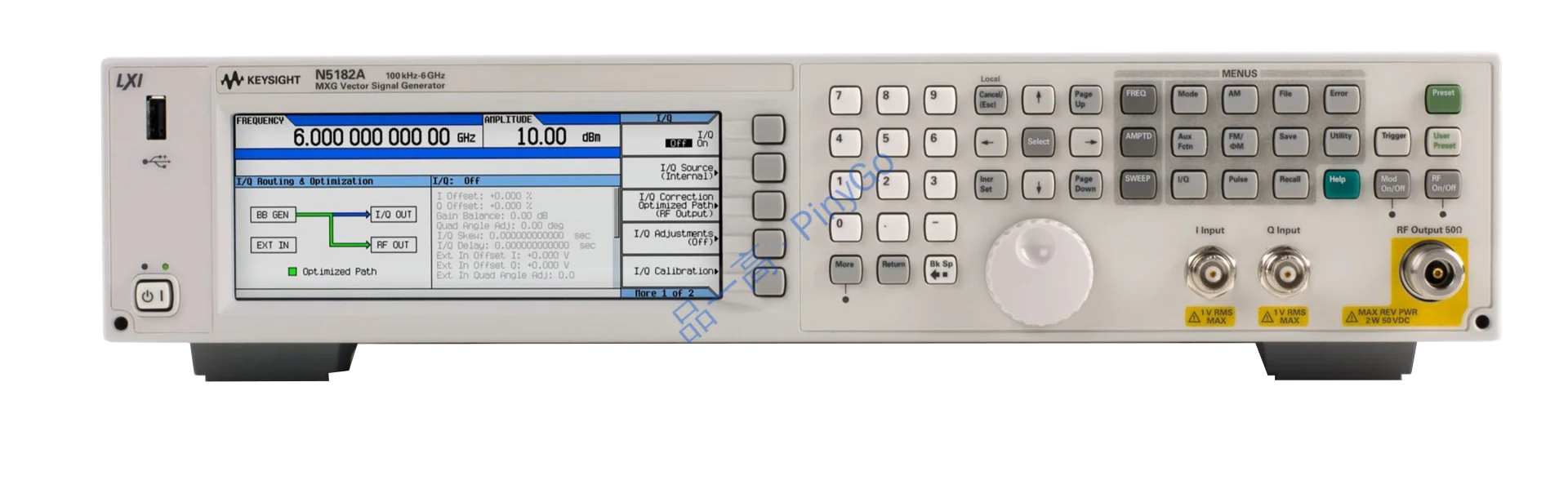

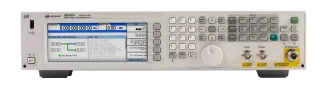

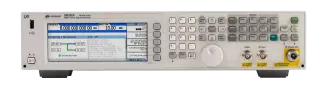

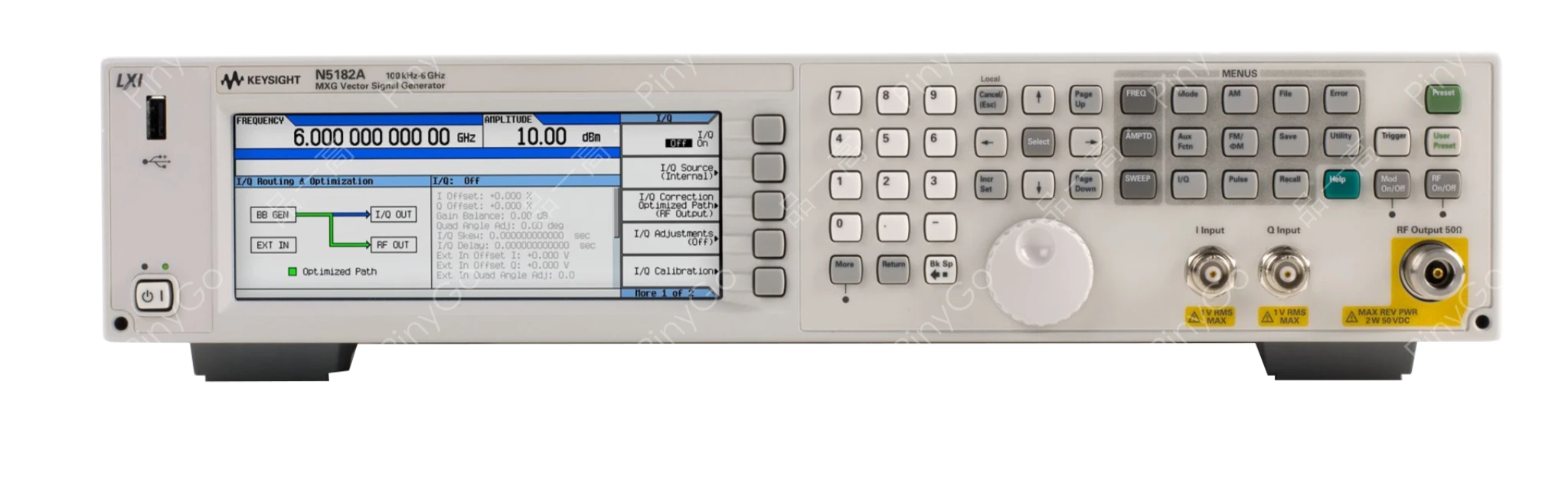

N5182A MXG Vector Signal Generator
Manufacturers
Keysight
Other Recommendations
6GHz Manufacturing-Optimized Signal Generator, 900μs Switching, +23dBm Output for High-Throughput Component Testing
⚡900μs
Simultaneous freq/amp/waveform change (Source: Input description)
📶+23dBm
At 3GHz with electronic attenuator (Source: Input description)
🔄
LTE/HSPA+/WiMAX/WLAN/DVB (Source: Input description)
| Core Parameter | Specification | Application Value |
|---|---|---|
| Switching Speed | ≤900μs (frequency/amplitude/waveform) | Increases production throughput by 40% vs traditional generators |
| Baseband Capability | 100MHz I/Q generator + 800MSa memory | Generates complex 5G NR/LTE-Advanced waveforms with EVM <1% |
| Maintenance Efficiency | Field-replaceable assemblies | Reduces repair downtime from days to <2 hours |
Core Application Scenarios
5G PA Production Testing — High-output power (+23dBm) drives amplifiers to compression without external boosters (Based on power spec)
Multi-Band IoT Module Calibration — 900μs switching between 2.4GHz/5GHz bands for concurrent BT/Wi-Fi testing (Based on switching speed)
Technical Deep Dive
Manufacturing-Optimized Architecture
Features "Triple-Channel Switching Engine + High-Power RF Path" design: Electronic attenuator maintains +23dBm output at 3GHz with 0.1dB resolution (Source: Input description). 100MHz real-time I/Q baseband enables <1° phase accuracy for 256QAM signals. 800MSa memory stores 100+ waveform configurations for instant recall. Backward-compatible with ESG/PSG/8648 systems via SCPI commands. Modular design allows field replacement of RF/power modules in <2 hours.
| Technical Dimension | N5181B MXG | Traditional SG | Advantage |
|---|---|---|---|
| Test Speed | 900μs parameter switching | 5-10ms typical | Enables testing 500+ devices/hour on high-volume lines |
| Waveform Flexibility | 800MSa memory + MATLAB integration | ≤64MSa typical | Stores 12x more test scenarios for complex devices |
Cellular PA Production Test Workflow
Connection: Connect PA to generator RF output, power sensor to PA output
Configuration:
- Load 5G NR FR1 waveform (100MHz BW, 256QAM)
- Set frequency: 3.5GHz, initial power: -10dBm
- Enable list mode: 10 power levels from -10 to +20dBmTesting:
- Measure gain flatness: ±0.5dB across band
- Verify ACPR: < -45dBc at +23dBm output
- Capture EVM: <3% at P1dB compression pointOutput: Auto-bin devices based on results, generate calibration certificate
Power Output Limitation
Output power decreases to +15dBm at 6GHz (Based on typical RF characteristics). Mitigation: ① For high-power mmWave testing, add external amplifiers; ② Use at ≤4GHz for maximum +23dBm performance.
