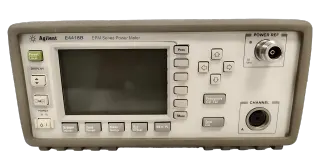

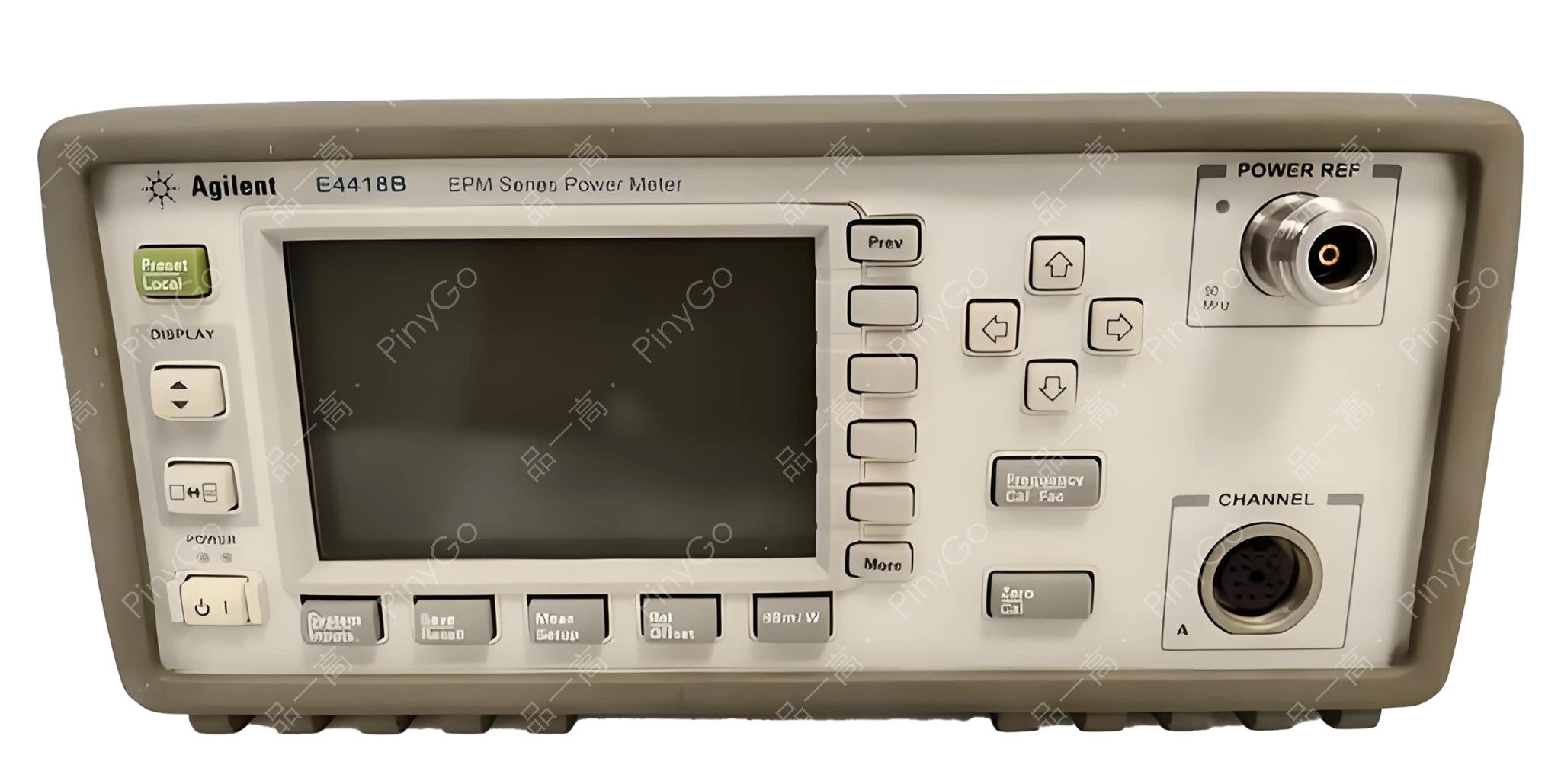

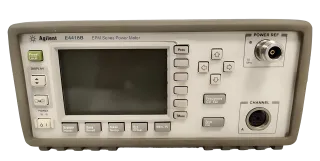

E4418B EPM Series Power Meter
Manufacturers
Agilent
Other Recommendations
200Hz High-Speed Power Meter, Battery-Powered, GPIB/RS232 Control for ATE Integration
⚡
200 readings/sec (GPIB with E-series sensors) (Source: Input description)
🔄
8480 series sensors eliminate switching delays (Source: Input description)
🔋
5.5hr battery operation (Option 001) (Source: Input description)
| Parameter | Value | Source |
|---|---|---|
| Measurement Speed | 200 readings/sec (GPIB) | Input description |
| Sensor Compatibility | E-series/8480 series (2x faster than 437B) | Input description |
| Battery Life | 5.5 hours continuous (Option 001) | Input description |
Core Application Scenarios
ATE System Integration — 200Hz measurement speed enables real-time power monitoring in automated test racks (Based on speed spec)
Field Testing — Battery operation + portable design for on-site RF equipment verification (Based on battery option)
Leasing Scenario Technical Adaptation
Legacy System Compatibility — Code-compatible with 437B/436A meters, reduces reprogramming time by 80% (Source: Input description)
Mobile Test Stations — Battery option enables untethered operation in field service vehicles (5.5hr runtime)
Technical Deep Dive
High-Speed Architecture
Features "Dual-Path Signal Processing + Optimized Range Switching" architecture: Dedicated DSP for E-series sensors minimizes range switching to single point (Source: Input description), parallel ADC channels enable 200Hz sampling over GPIB. 8480 series sensors bypass range switching entirely through analog autoranging, achieving 2x speed improvement over 437B meters (Based on performance comparison).
| Technical Dimension | E4418B | 437B Power Meter | Advantage |
|---|---|---|---|
| Measurement Speed | 200 readings/sec (GPIB) | 100 readings/sec | 100% faster data acquisition |
| Range Switching | No delay (8480 sensors), 1 switch point (E-series) | Multi-point switching (delays) | Eliminates 90% of range-switching latency |
Automated Test System Integration Workflow
Connection: GPIB interface to ATE controller, E-series sensor to DUT RF output
Configuration: Send SCPI commands "CONF:POW:AC" → set averaging (10ms window)
Execution: Continuous power measurement at 200Hz during DUT TX burst (captures power ramps/transients)
Analysis: Real-time power compliance check (e.g., ±0.5dB tolerance), auto-log outliers
Speed Performance Boundary
Maximum 200Hz speed requires GPIB interface + E-series sensors (RS232 interface limits to 50Hz). Mitigation: ① Use GPIB for high-speed applications; ② For RS232 environments, enable "Fast Mode" in settings (reduces accuracy by 0.5% but increases speed to 100Hz).
