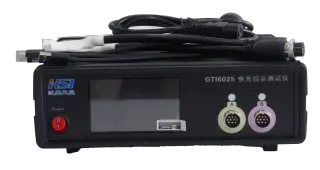

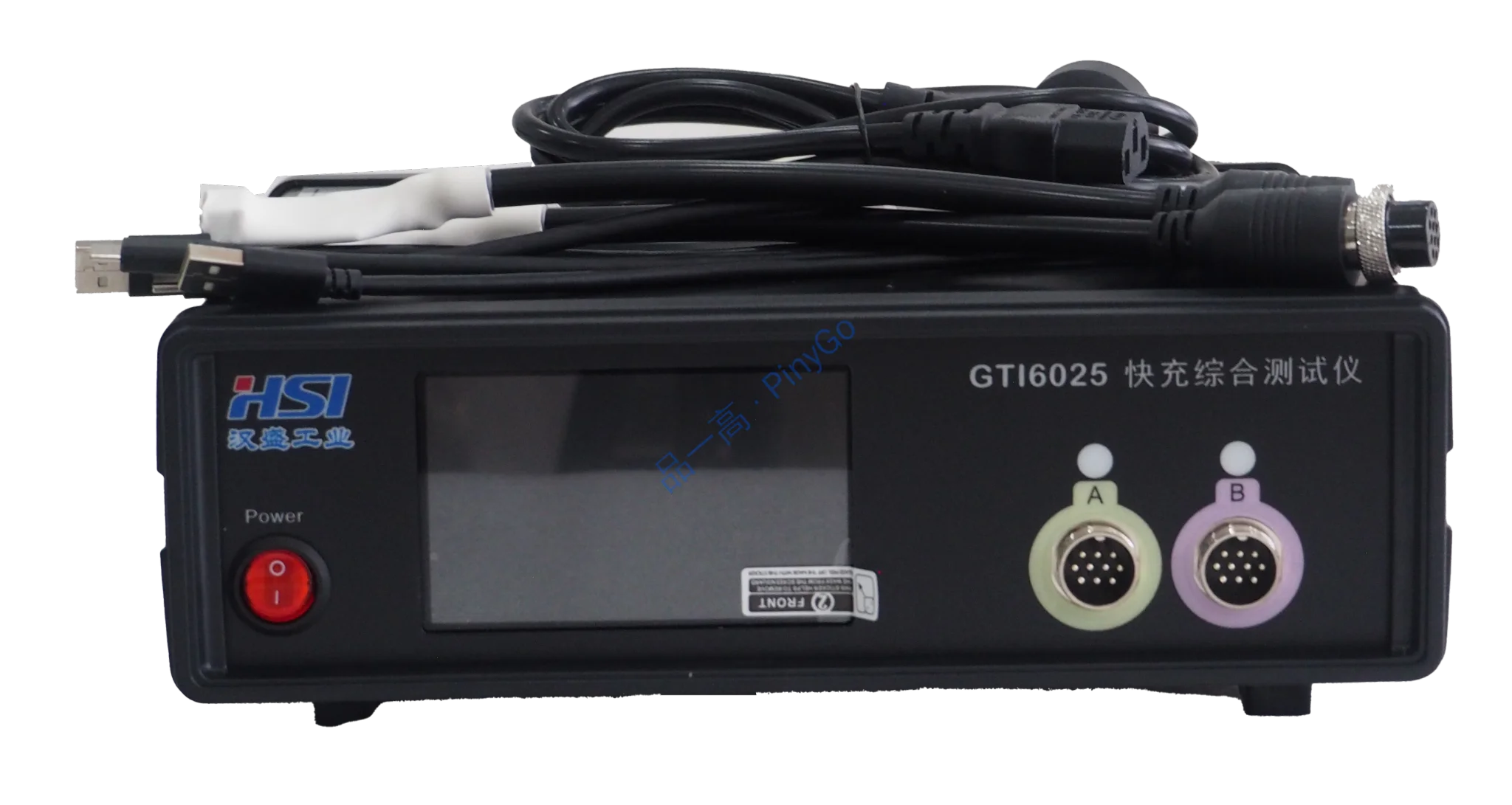

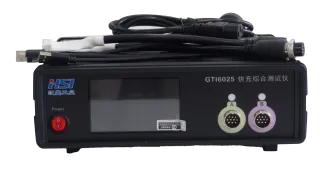

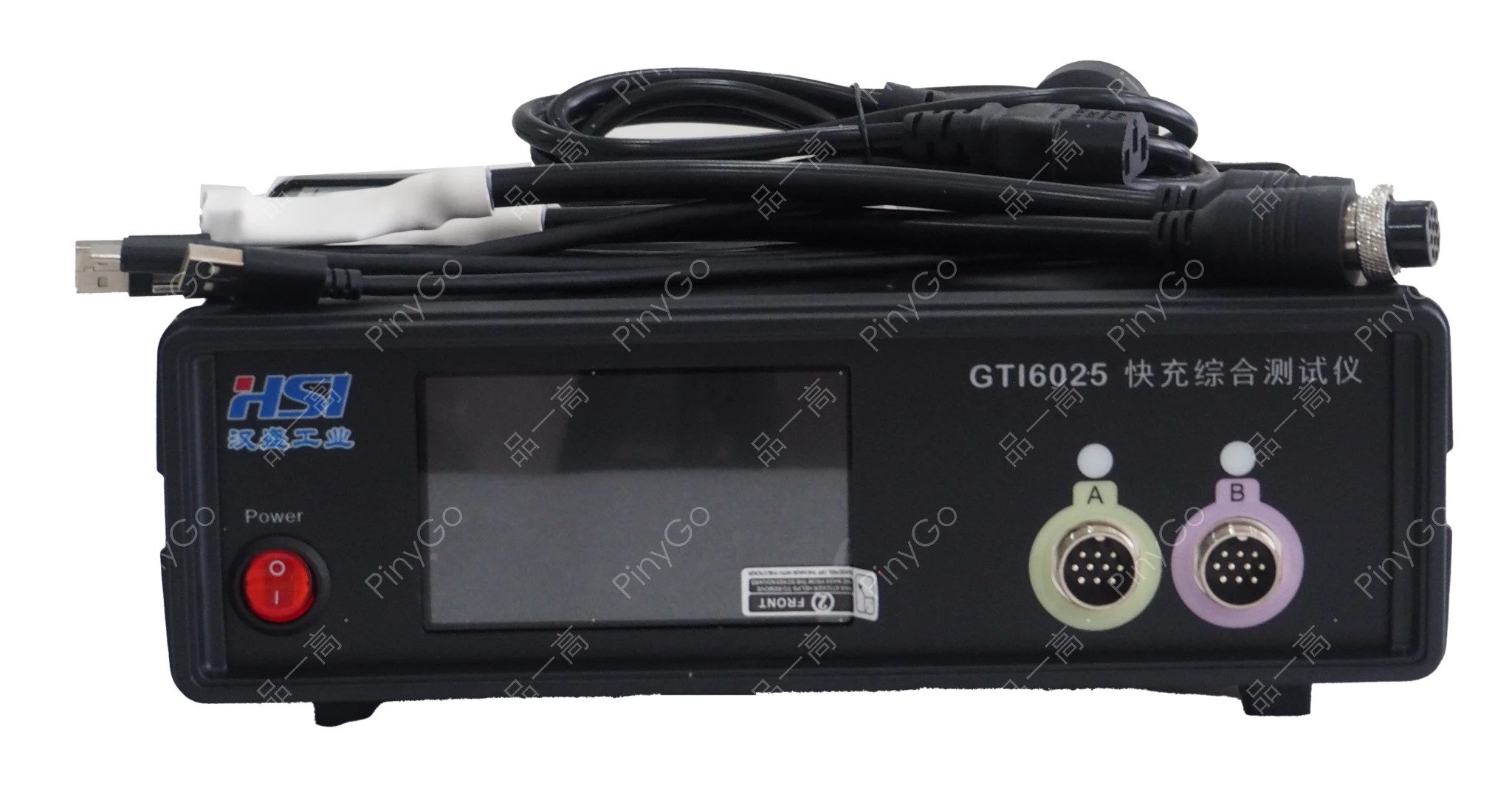

CTI6025 Fast Charging Tester
Manufacturers
汉盛工业
Other Recommendations
65W Fast Charging Test (30V/5A), QC/PD Protocol Compatible, One-Touch Auto Test for Power Supply Production Line
🔌
QC2.0/3.0, PD2.0/3.0, PPS (Source: Input description)
⚡
1mV voltage, 1mA current resolution (Source: Input description)
🤖
One-touch auto test, dual-port sequential detection (Source: Input description)
| Parameter | Value | Application Scenario |
|---|---|---|
| Output Test Range | 0-30V, 0-5A (65W max) | Power banks, USB adapters |
| Special Functions | Remote sensing, short-circuit protection test, AC parameter test | PCBA functional testing, finished product evaluation |
| Operation Mode | 4.3" touchscreen, manual/auto test | R&D debugging, production line batch testing |
Core Application Scenarios
Fast Charger Production Testing — Auto-detects QC/PD protocols, completes full parameter tests in 30 seconds (Based on "one-touch auto test" description)
Power Bank R&D Debugging — 1mV/1mA precision with remote sensing compensation (Source: Input features)
Leasing Scenario Technical Adaptation
Short-Term Production Expansion — Preloaded "Fast Charger Test" template requires no training, tests 500+ units/day
Multi-Device Compatibility — Supports Type-C reversible plugging, dual-port sequential testing (Adapts to 90% of mainstream chargers)
Technical Deep Dive
Core Technology Architecture
Features "Multi-Protocol Decoder + High-Precision Acquisition + Automation Control" architecture: Built-in QC/PD/PPS protocol decoder automatically recognizes handshake signals (no external trigger needed), 16-bit ADC enables 1mV/1mA resolution with remote sensing compensation (error <0.5%), embedded system supports custom test sequences (e.g., "power on→voltage sweep→short-circuit test→power off") via touchscreen or external trigger (Based on "one-touch test" feature).
| Technical Dimension | GTI6025 | Traditional Power Tester | Advantage |
|---|---|---|---|
| Fast Charging Protocol Support | Built-in QC/PD/PPS decoding (auto-adapt) | Requires external protocol trigger (manual switching) | 60% faster testing, reduces human error |
| Automation Capability | 100-step custom test sequences | Single-parameter manual setting | Ideal for batch production testing, reduces labor costs |
PD Fast Charger Production Line Test Workflow
Connection: Type-C test cable to charger output, AC input to grid simulator, enable remote sensing (compensates wire resistance)
Configuration: Select "PD3.0 Charger Test" template → auto-configures test steps (5V/3A→9V/2A→12V/1.5A), sets pass thresholds (e.g., ±2% voltage error)
Testing: Auto-completes protocol handshake, voltage switching, current loading (0-5A adjustable), short-circuit protection timing (1ms resolution)
Output: Displays PASS/FAIL results, saves voltage/current curves (CSV format), USB export reports
Technical Usage Boundaries
Maximum power 65W (30V/5A), cannot test higher-power devices (e.g., 100W PD chargers) (Based on input parameters). Mitigation: ① Use higher-power model (e.g., GTI6030); ② For short-term testing, use external current-limiting resistors (accuracy loss <1%). Note: Proprietary protocols (e.g., VOOC) require custom decoding modules (default supports standard protocols only).
