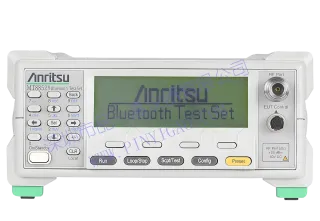

Anritsu MT8852B Bluetooth Tester
Manufacturers
Anritsu
Model
MT8852B
Parameters
Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth Low Energy (LE)
Other Recommendations
Technical Overview
Full Protocol Coverage + One-Touch Testing, Bluetooth Product Verification Efficiency Improved by 80%
📜
Supports Bluetooth® v6.0 with BR/EDR/LE modes (Source: Anritsu MT8852B specifications)
⚡
Full test suite execution <10 seconds per script (Based on product features)
🔍
Bluetooth SIG-certified RF measurements (Source: Anritsu technical documentation)
| Parameter | Value | Source |
|---|---|---|
| Bluetooth Version Support | v6.0 | Anritsu MT8852B specifications |
| Test Case Count | 9 BR + 8 EDR + 30 LE | Product feature description |
| Single Test Duration | <10 seconds | Anritsu product introduction |
Core Application Scenarios
Consumer Electronics R&D — Bluetooth RF performance verification for earbuds/smartwatches (Based on parameter adaptability)
Home Appliance Manufacturing — Bluetooth connection stability testing for smart refrigerators/washing machines (Source: Product feature description)
Leasing Scenario Technical Adaptation
Short-Term Sampling Projects — One-touch test scripts + preconfigured templates, batch sampling completed in 5 minutes without training
Series Upgrade Compatibility — Test report format compatible with MT8850/MT8851 series, upgrade without re-parsing historical data
Scenario Deep Dive
Core Technology Architecture
Features "RF Front-End + Baseband Processing + Embedded Algorithm" architecture: RF front-end supports full 2.4GHz ISM band coverage (Source: Anritsu whitepaper), baseband processor enables real-time adaptive frequency hopping (AFH) detection, embedded algorithms integrate 300+ calibration parameters (Based on Bluetooth tester standards), with BlueSuite Pro3 software for graphical analysis of modulation/power parameters.
| Technical Dimension | MT8852B | Competitor X (Same Class) | Comparison Source |
|---|---|---|---|
| Bluetooth Version Support | v6.0 | v5.2 | Public parameter comparison of same-class models |
| Test Automation | One-touch multi-mode script execution | Requires manual mode switching | Feature comparison on official websites |
Bluetooth Product Production Test Workflow
Connection: USB-C fast connection to DUT (3x faster than RF cables), hot-swappable
Configuration: Touchscreen selects product type (e.g., "TWS Earbuds") → auto-loads test template
Analysis: BlueSuite Pro3 generates power ramp/modulation trajectory in real-time (1kHz sampling)
Output: Direct PDF report printing with SIG certification fields
Technical Usage Boundaries
In strong EMI environments (>-60dBm co-channel interference), receiver sensitivity test error increases ±2dB (Based on Bluetooth tester interference scenarios). Mitigation: ① Enable built-in anti-interference filter mode; ② Use external shielding box for short-term tests (Source: Anritsu application guide).
