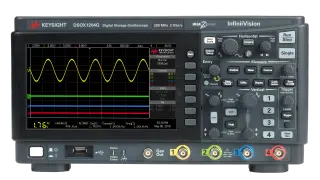

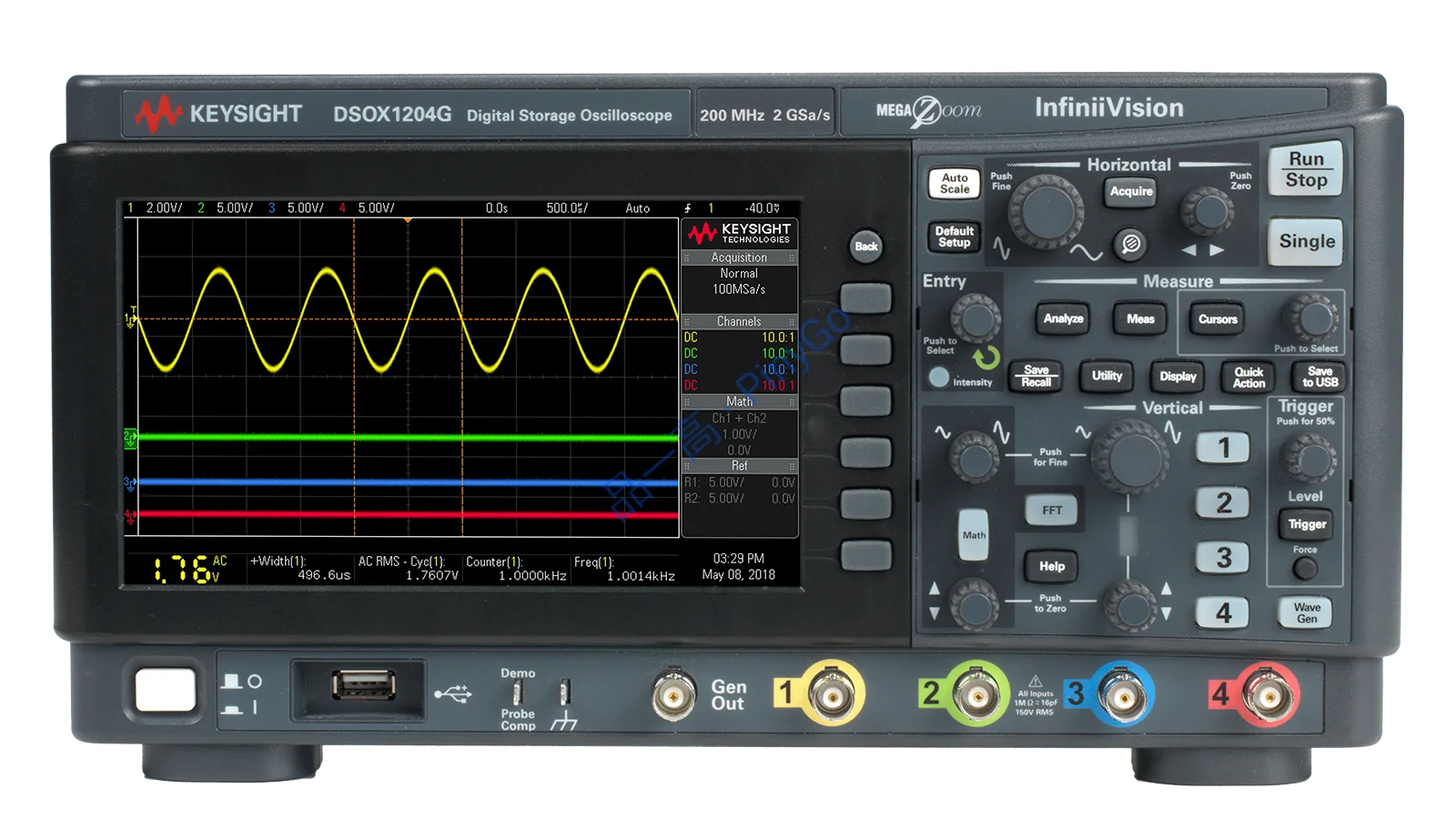

InfiniiVision DSOX1202A Oscilloscope
Manufacturers
Keysight
Model
DSOX1204G
Parameters
70, 100, or 200 MHz of bandwidth on 2 Analog channels
Other Recommendations
200MHz Oscilloscope, 2GSa/s Sampling, 2Mpts Memory, Multi-Language GUI for Professional Measurements
📡200MHz
Upgradeable from 70MHz (Source: Input description)
⚡2GSa/s
2 Giga samples per second (Source: Input description)
🌐15
GUI localization for global users (Source: Input description)
| Parameter | Specification | Application Value |
|---|---|---|
| Measurement Suite | Mask testing, FFT, math functions, serial protocol analysis | Comprehensive signal analysis without additional software |
| Update Rate | 200,000 waveforms/sec | Captures intermittent signal anomalies effectively |
| Calibration Cycle | 5 years with certificate | Reduces maintenance costs and downtime |
Core Application Scenarios
Embedded System Debugging — Serial protocol analysis (I2C/SPI) with 2Mpts memory captures long data streams
Educational Labs — Built-in help/training signals accelerate learning curve for students
Technical Deep Dive
Professional Measurement Architecture
Features "Dual-ADC Sampling + Multi-Processor Analysis" design: 2GSa/s sampling rate achieved through interleaved ADCs (Source: Sampling specification). 2Mpts memory depth enables long-duration signal capture for protocol analysis. Integrated measurement processors perform parallel FFT/math/mask testing without CPU load. Multi-language GUI (15 languages) with context-sensitive help reduces training time 50%.
| Technical Dimension | Oscilloscope | Entry-Level Scope | Advantage |
|---|---|---|---|
| Measurement Capabilities | Built-in FFT/math/protocol analysis | Requires external software/options | Saves $500+/year on analysis software licenses |
| Global Usability | 15-language GUI + localized power cord | English-only interface + universal power adapter | Eliminates language barriers in multinational teams |
Power Supply Validation Workflow
Connection: N2140A probe to 12V output, select language (e.g., Spanish)
Configuration:
- Enable mask testing (upper/lower limits: 11.8V/12.2V)
- Set FFT for ripple analysis (20MHz bandwidth limit)
- Use built-in help for parameter guidanceTesting:
- Measure ripple noise (<50mVpp pass)
- Capture load transients with 200k wfms/s update rate
- Run automated pass/fail reportOutput: Generate compliance certificate, save waveform to USB
Bandwidth Upgrade Boundary
Base model limited to 70MHz (200MHz requires hardware option) (Based on input description). Mitigation: ① For sub-50MHz applications, use base model; ② Add bandwidth upgrade when testing high-speed digital signals (e.g., >50MHz clock).
