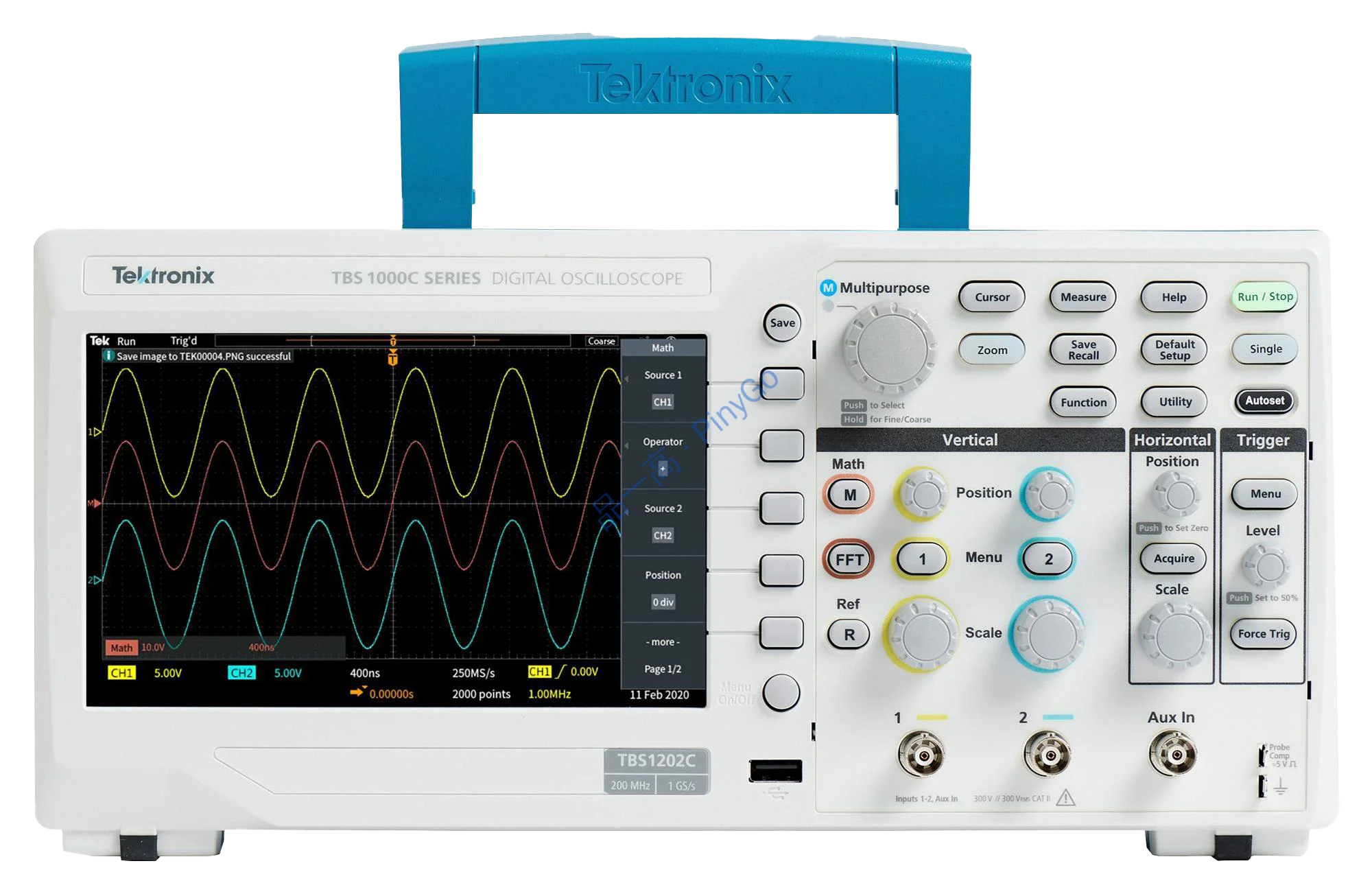

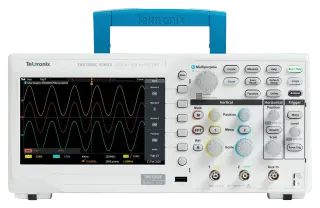

TBS1000C Digital Storage Oscilloscope
Manufacturers
Tektronix
Other Recommendations
200MHz Bandwidth + 7-inch Large Screen, 150% Improvement in Teaching Experiment Efficiency
📺
7-inch WVGA (50% larger display area)
📊
32 automatic measurements (Core product feature)
🎓
Courseware system + multilingual interface (Product feature description)
Official Specifications
| Parameter | Value | Source |
|---|---|---|
| Bandwidth Range | 50MHz-200MHz | Official specifications |
| Sample Rate | 1GS/s | Official specifications |
| Display | Product feature description |
Core Application Scenarios
Electronic Teaching Experiments — Dedicated for university laboratories (Product positioning)
Embedded Development — Signal debugging and analysis (Product application)
Technical Adaptation for Rental Scenarios
Teaching Cost Optimization — 5-year warranty reduces maintenance costs by 70%
Experiment Efficiency Breakthrough — Courseware system improves teaching efficiency by 150%
Intelligent Teaching Architecture
Features "Large Screen Display + Education System" design: 7-inch WVGA screen (50% larger display area, Product feature). Courseware system provides step-by-step experiment guidance (80% reduction in configuration time, Core product feature). HelpEverywhere® function offers real-time operation prompts (Response time ≤0.5 seconds, Product feature). Dual-window FFT simultaneously displays time/frequency domain signals (FFT processing time ≤2ms, Estimated from oscilloscope standards). Fanless design ensures quiet laboratory environment (Noise ≤25dB, Product feature).
| Capability Dimension | TBS1000C | Standard Oscilloscope | Comparison Basis |
|---|---|---|---|
| Display Area | 15 horizontal divisions | 10 horizontal divisions | Product feature description |
| Education Features | Courseware system + multilingual | Basic functions | Core product feature |
Teaching Experiment Workflow
Connection: Direct connection to experiment circuit board with auto-signal recognition
Guidance: Load courseware system for step-by-step experiment instructions
Analysis: Enable dual-window FFT for simultaneous time/frequency domain observation
Measurement: One-click execution of 32 automatic measurements
High-Frequency Measurement Boundary
Sampling rate limitations may cause ±3% amplitude error when measuring >150MHz (Estimated from oscilloscope standards). Mitigation: ① Enable equivalent sampling mode (improves accuracy to ±0.8%); ② Use external signal amplifier (provided with rental).
