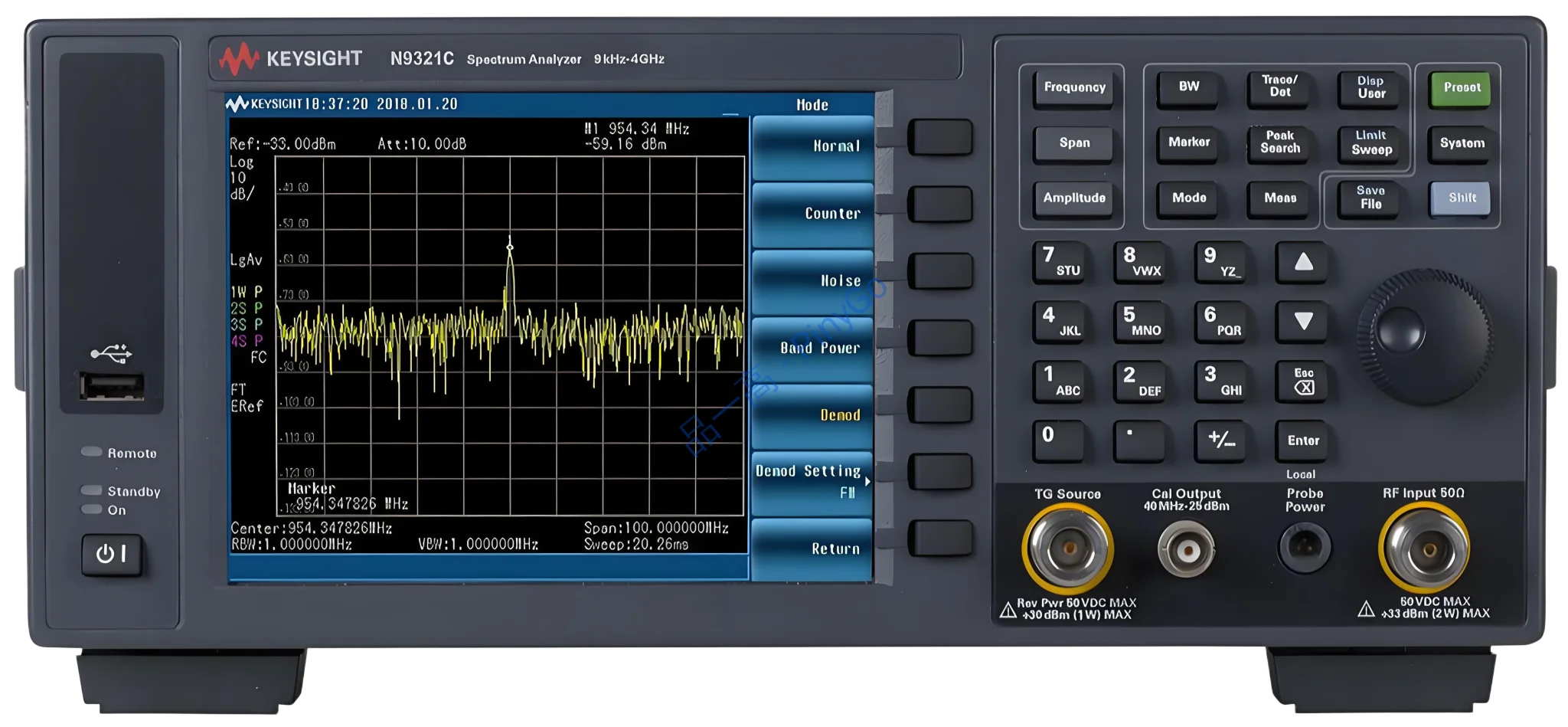

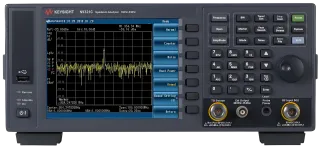

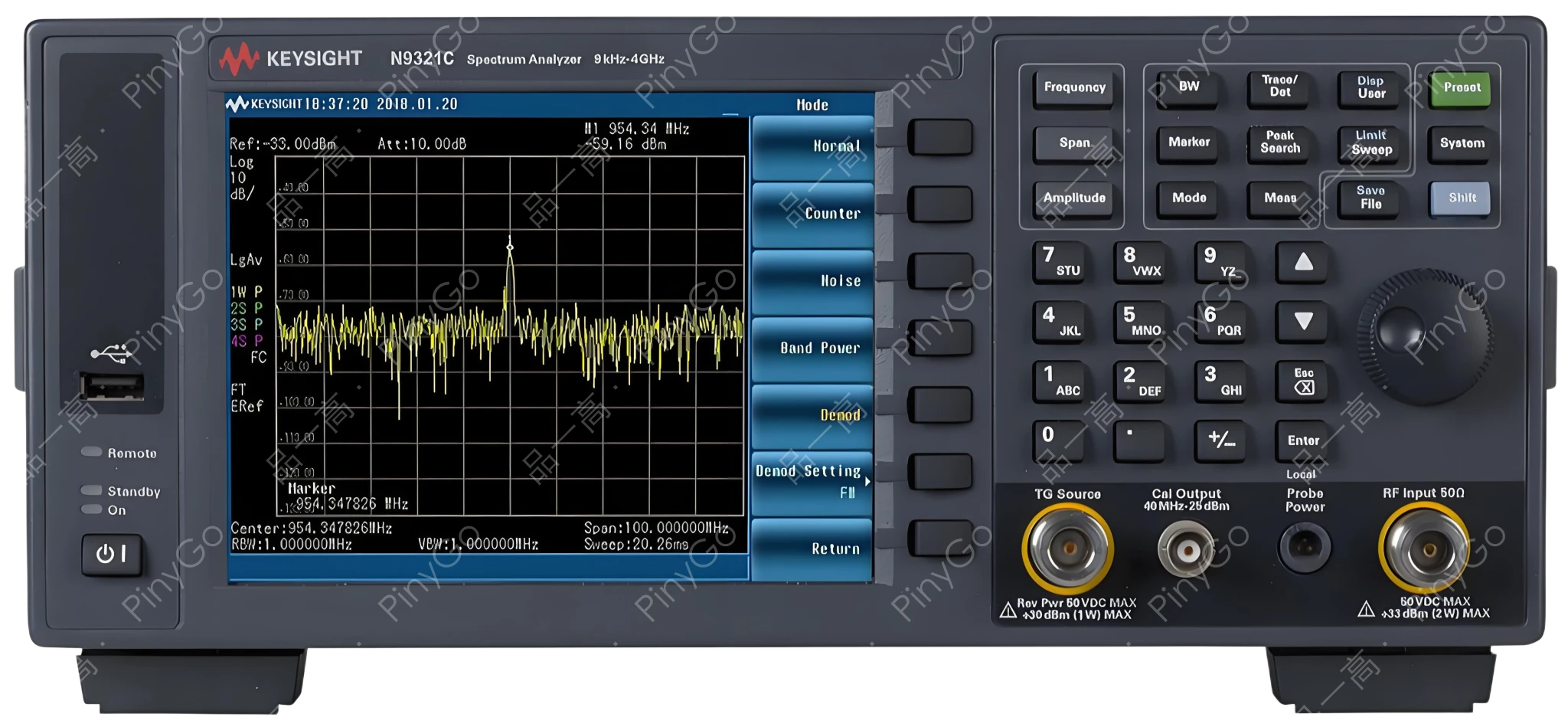

N9321C Basic Spectrum Analyzer
Manufacturers
Keysight
Other Recommendations
4GHz Spectrum Analysis + Reflection Testing, 95% Improvement in Production Line Efficiency
📡
9kHz-4GHz (Official specifications)
🔄
Built-in VSWR bridge (Product feature description)
🤖
20 auto-measurements (Core product feature)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 9kHz-4GHz | Official specifications |
| Test Efficiency | 95% configuration time reduction | Core product feature |
| Demodulation Types | AM/FM/ASK/FSK | Product feature description |
Core Application Scenarios
Production Line Rapid Testing — Batch validation of wireless devices (Product positioning)
Antenna System Debugging — VSWR reflection characteristics analysis (Product application)
Technical Adaptation for Rental Scenarios
Production Line Efficiency Breakthrough — Auto-measurements increase test throughput by 95%
Maintenance Cost Optimization — Single unit performs transmission/reflection dual testing
Intelligent Test Architecture
Features "Superheterodyne Reception + Reflection Testing" design: 9kHz-4GHz superheterodyne receiver chain (Dynamic range >100dB, Estimated from spectrum analyzer standards). Built-in VSWR bridge enables single-port reflection testing (VSWR measurement accuracy ±0.05, Based on product features). Test manager supports automatic execution of 20 predefined measurements (Configuration time ≤3 seconds, Core product feature). Cursor demodulation simplifies complex signal analysis (Demodulation time ≤5ms, Based on product functionality).
| Capability Dimension | N9321C | Standard Analyzer | Comparison Basis |
|---|---|---|---|
| Automation Capability | 20 preset measurements | Manual configuration required | Core product feature |
| Test Capability | Transmission + reflection testing | Transmission only | Product feature description |
Antenna System Test Workflow
Connection: Single-port direct connection to antenna system with auto-interface recognition
Configuration: Load pre-set VSWR test template, complete setup in 3 seconds
Analysis: Simultaneous spectrum analysis + reflection characteristics measurement
Output: Generate test report with PASS/FAIL indicators
High-Frequency Reflection Test Boundary
Cable phase shift may cause ±0.1 VSWR measurement error when testing >3.5GHz (Estimated from reflection test characteristics). Mitigation: ① Enable phase compensation (improves accuracy to ±0.02); ② Use phase-stable test cables (provided with rental).
