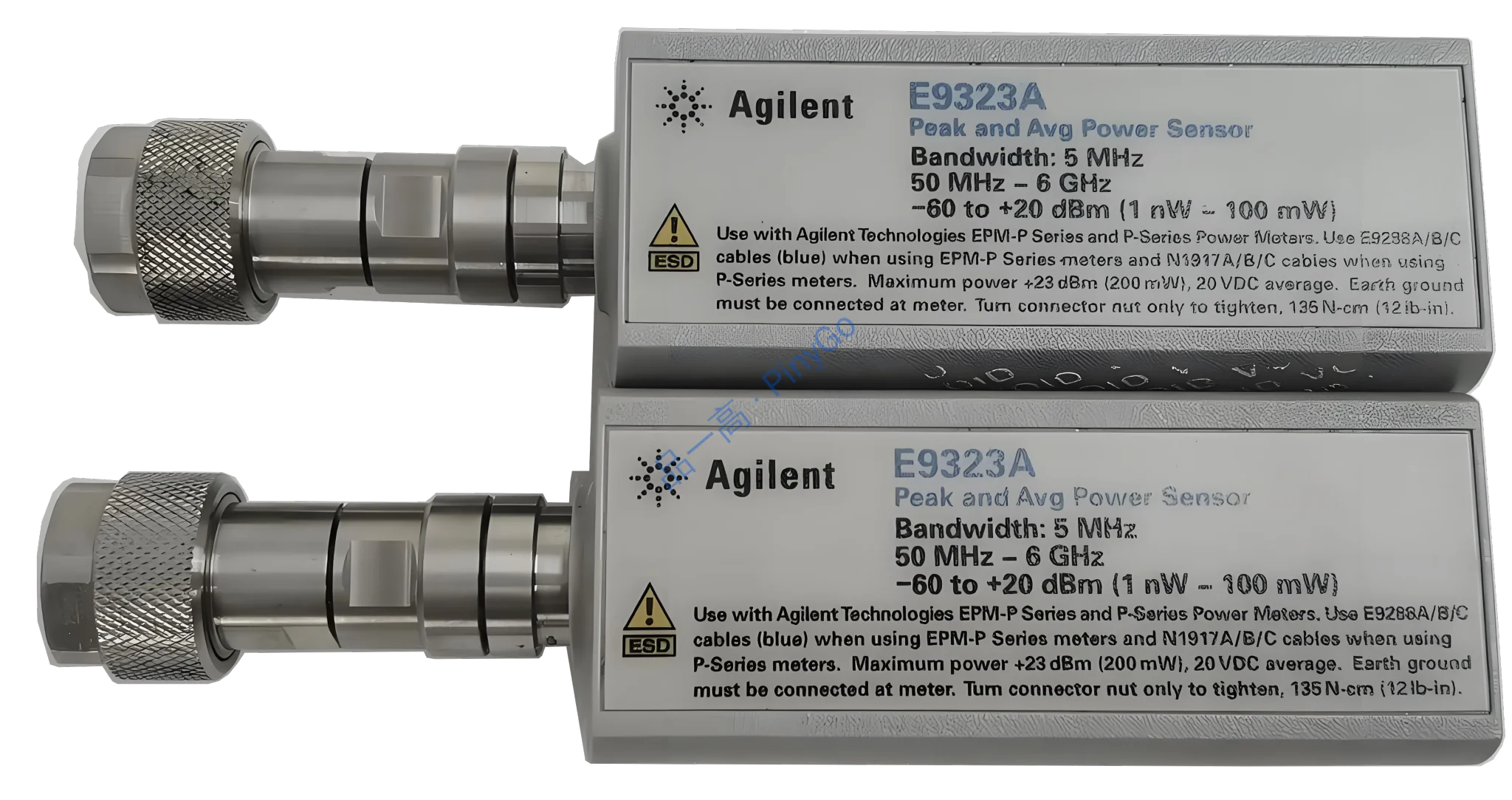

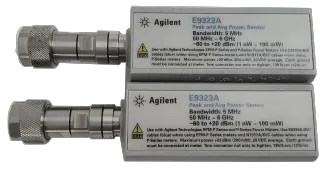

E9323A Peak and Average Power Sensor
Manufacturers
Agilent
Other Recommendations
5MHz Video Bandwidth Power Sensor, 1000Hz Measurement Speed, Precision Calibration for 3G/CDMA Applications
📺
5MHz for W-CDMA/cdma2000 signals (Source: Input description)
⚡
1000 readings/sec via GPIB (Source: Input description)
🎯
EEPROM-stored correction data (Source: Input description)
| Parameter | Specification | Application Value |
|---|---|---|
| Video Bandwidth | 5MHz | Accurate power measurement for 3G/CDMA signals |
| Measurement Speed | 1000 readings/sec (GPIB) | Captures fast power transients in cellular systems |
| RF Connector | Precision Type-N | Ensures repeatable measurements with low VSWR |
Core Application Scenarios
3G Base Station Testing — 5MHz video bandwidth accurately measures W-CDMA power (Based on bandwidth spec)
CDMA Handset Production — 1000Hz measurement speed enables high-throughput testing
Leasing Scenario Technical Adaptation
High-Speed Production Lines — 1000Hz measurement speed enables testing 3x more devices/hour
Multi-Meter Compatibility — Works with EPM-P/P-series power meters (Reduces equipment costs)
Technical Deep Dive
High-Speed Measurement Architecture
Features "Wideband Detector + GPIB-Optimized Interface" design: 5MHz video bandwidth enables accurate measurement of CDMA/W-CDMA signals (Source: Input description). High-speed ADC and dedicated DSP achieve 1000 calibrated readings/sec over GPIB. Precision Type-N connector maintains <1.5:1 VSWR up to 6GHz. EEPROM stores temperature/linearity/bandwidth correction data for ±0.5dB measurement accuracy.
| Technical Dimension | Power Sensor | Traditional Sensor | Advantage |
|---|---|---|---|
| Measurement Speed | 1000 readings/sec | 100-400 readings/sec | 2.5-10x faster throughput |
| Signal Processing | Real-time bandwidth/temperature compensation | Manual correction required | Eliminates post-processing time |
CDMA Power Control Test Workflow
Connection: Sensor connected to CDMA handset RF output via precision Type-N cable
Configuration: Power meter auto-loads EEPROM calibration data (bandwidth/temperature)
Testing:
- Measure power control steps at 1000 samples/sec
- Verify open-loop power control response time
- Capture fast power transients during handoffAnalysis: Generate power vs time plot with 1ms resolution
GPIB Speed Boundary
1000Hz speed requires GPIB interface (RS232/USB limited to 200Hz) (Based on interface specification). Mitigation: ① Use GPIB for high-speed applications; ② For non-GPIB environments, enable averaging mode (reduces speed to 100Hz but improves accuracy).
