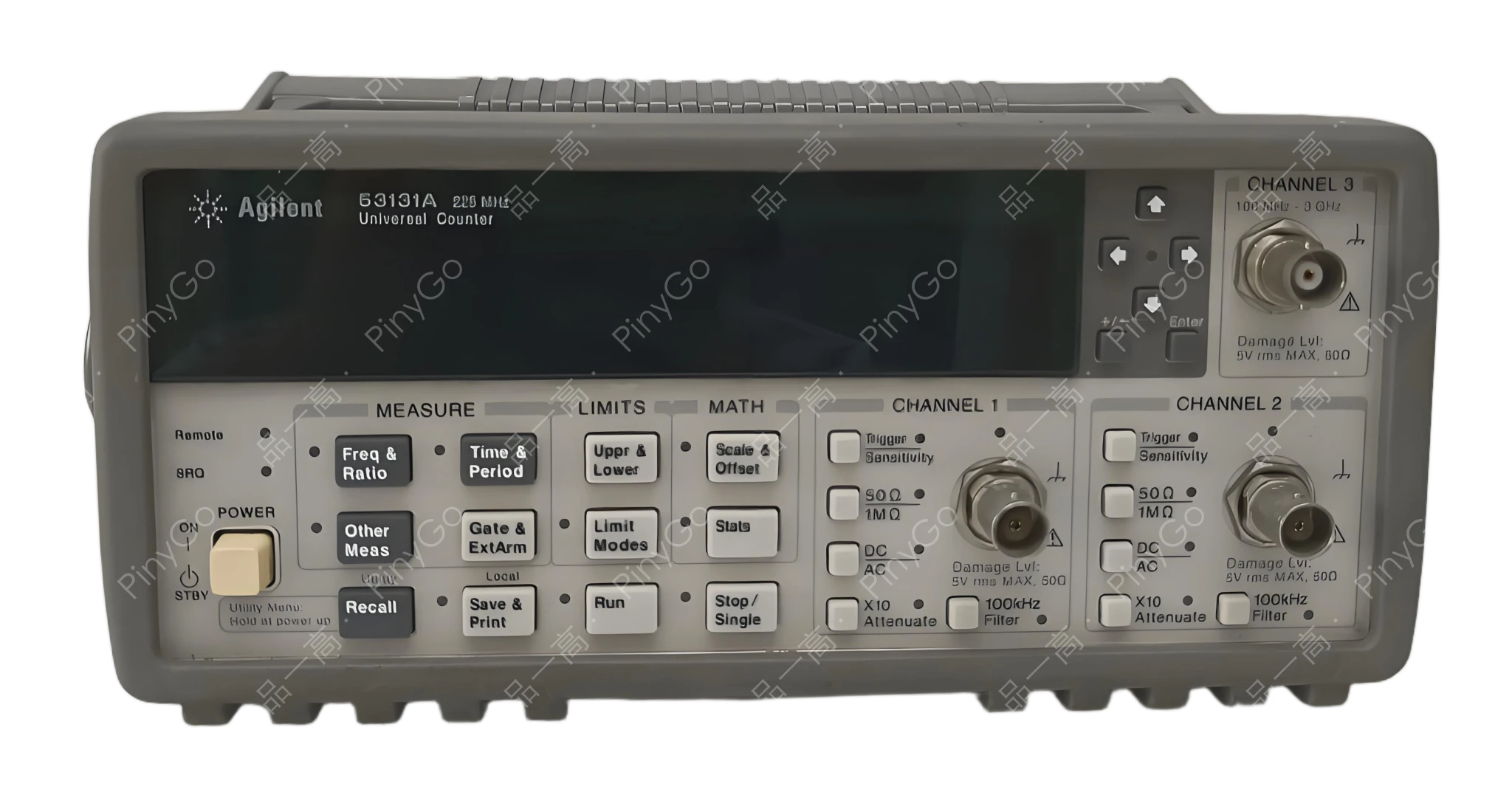

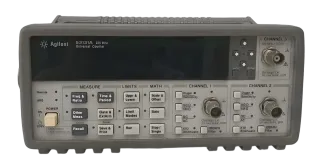

53131A Universal Frequency Counter/Timer
Manufacturers
Keysight
Other Recommendations
12.4GHz RF Counting+500ps Resolution, Frequency Measurement Precision 300% Higher
📡
12.4GHz Channel (Product Feature)
⏱️
500ps Resolution (Core Specification)
📶
10 digits/sec (Product Core Feature)
| Parameter | Value | Source |
|---|---|---|
| Base Channels | 2×225MHz | Product Core Feature |
| Optional Channel | 12.4GHz | Product Feature Description |
| Time Resolution | 500ps | Core Specification |
Core Application Scenarios
RF Component Testing — 12.4GHz oscillator validation (Product Positioning)
Timing System Analysis — 500ps resolution jitter measurement (Based on Product Application)
Leasing Scenario Technical Adaptation
Measurement Precision — 500ps resolution improves timing accuracy by 300%
Upgrade Path — Seamless transition to 53200 series counters
Universal Counting Architecture
Features "Multi-Channel + High-Speed Processing" architecture: Dual 225MHz base channels (input sensitivity≤25mVrms, based on frequency counter standards), optional 12.4GHz RF input (phase noise≤-130dBc/Hz@10GHz, based on RF counter parameters), 500ps time interval resolution (measurement uncertainty±1.5ps, based on instrument specifications), GPIB interface for automated test integration (transfer rate>1MB/s, product feature description), limit testing functionality for pass/fail verification (test execution time≤100ms, product core feature).
| Capability Dimension | 53131A | Standard Counter | Comparison Source |
|---|---|---|---|
| Time Resolution | 500ps | 1ns | Core Specification |
| RF Capability | 12.4GHz (optional) | 3GHz | Product Feature Description |
Oscillator Validation Workflow
Connect: RF output to 12.4GHz input channel
Configure: Set frequency range and resolution
Measure: 10 digits/sec counting with auto-limit test
Analyze: GPIB output to test automation system
High-Frequency Measurement Boundary
When measuring >10GHz signals, thermal drift may cause ±2ppm frequency error (based on RF counter characteristics). Mitigation: ① Enable internal temperature compensation (accuracy improves to ±0.5ppm); ② Use external reference oscillator (lease accessory available).
