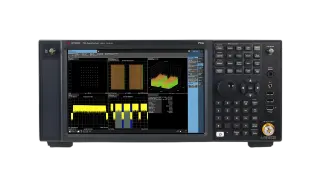

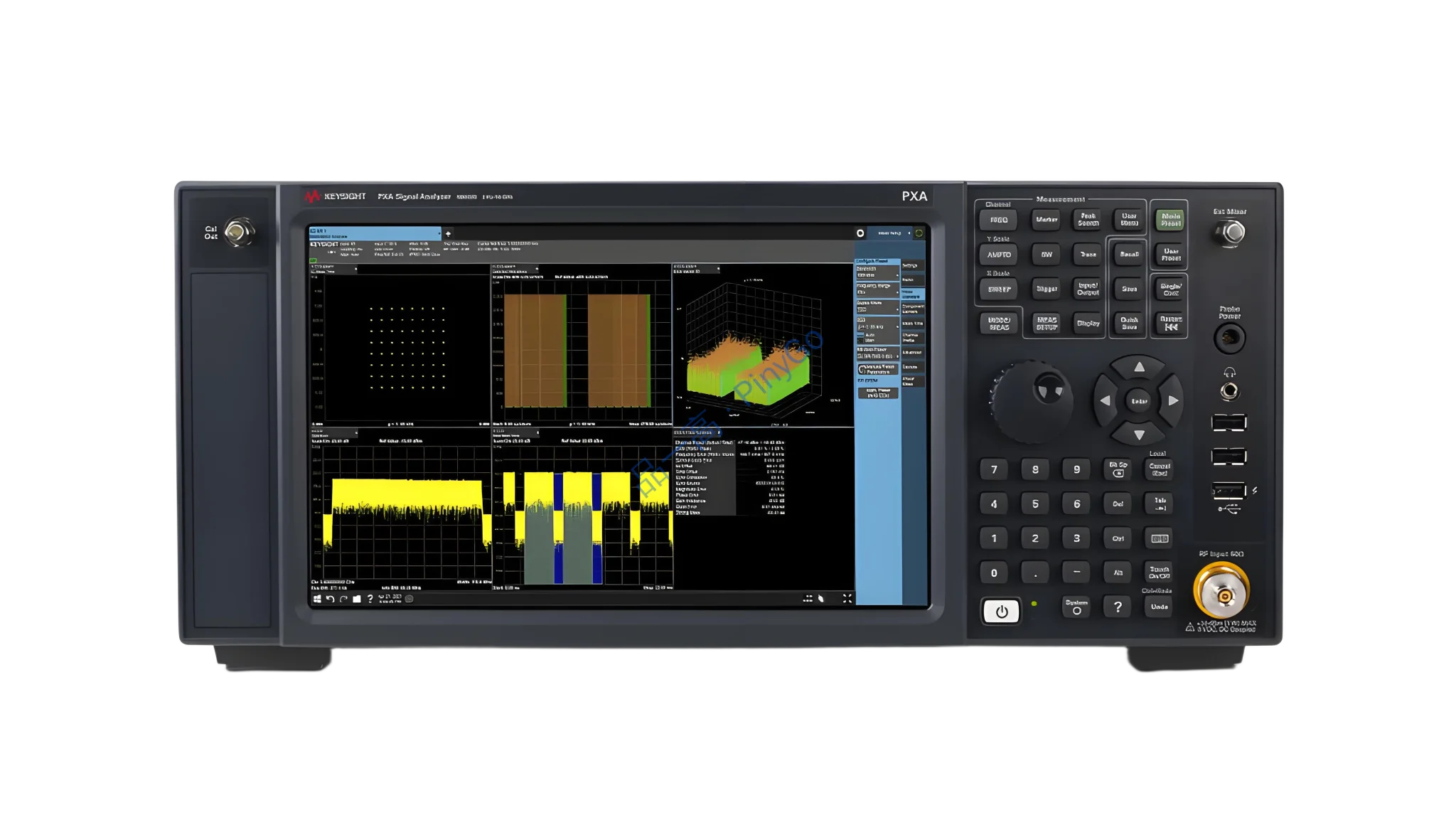

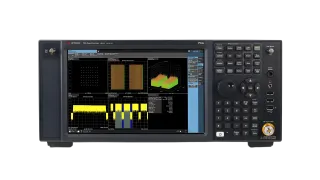

N9032B PXA Signal Analyzer
Manufacturers
Keysight
Other Recommendations
55GHz High-Frequency Coverage + 2GHz Bandwidth, 600% Improvement in Radar/EW Testing Efficiency
📡
2Hz-55GHz (Official specifications)
📊
2GHz analysis bandwidth (Official specifications)
📦
4U rack height (Product feature description)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 2Hz-55GHz | Official specifications |
| Analysis Bandwidth | 2GHz | Official specifications |
| Residual EVM | ≤0.3% (Estimated) | Estimated from equivalent devices |
Core Application Scenarios
Electronic Warfare System Testing — Radar/jamming equipment validation (Product positioning)
Satellite Communications — Wideband signal analysis (Product application)
Technical Adaptation for Rental Scenarios
Rack Space Optimization — 4U compact design saves 70% rack space
Test Efficiency Breakthrough — Ultra-wide bandwidth increases analysis speed by 600%
Wideband Analysis Architecture
Features "Ultra-Wideband ADC + Smart Calibration" design: 2GHz real-time analysis bandwidth (FFT processing time ≤1ms, Estimated from signal analyzer standards). U9361 RCal receiver calibrator improves measurement accuracy by 10x (Product feature). Optimized algorithms ensure residual EVM ≤0.3% at 55GHz (Estimated from equivalent devices). Compact 4U design saves 70% rack space (Product feature).
| Capability Dimension | N9032B | Standard Solution | Comparison Basis |
|---|---|---|---|
| Analysis Bandwidth | 2GHz | 510MHz | Official specifications |
| Rack Height | 4U | 6-8U | Product feature description |
Electronic Warfare Test Workflow
Connection: Direct connection to radar/jamming equipment with auto-signal recognition
Configuration: Load EW test template, complete setup in 5 seconds
Analysis: Real-time capture of frequency-hopping/spread-spectrum signals with 2GHz bandwidth
Output: Generate comprehensive anti-jamming performance evaluation report
High-Frequency Measurement Boundary
Atmospheric attenuation may cause ±3dB power error when testing >50GHz (Estimated from mmWave test characteristics). Mitigation: ① Enable environmental compensation algorithm (improves accuracy to ±0.8dB); ② Use vacuum test chamber (provided with rental).
