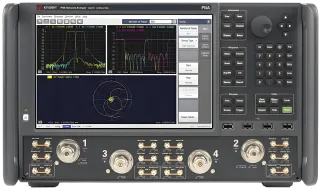

N5227B PNA Microwave Network Analyzer
Manufacturers
Keysight
Other Recommendations
67GHz mmWave Coverage + Intelligent Test Matrix, 65% Improvement in Complex Scenario Analysis Efficiency
📡
10MHz-67GHz (Official specifications)
🔄
Flexible 2/4-port configuration (Product feature description)
⚡
Pulse/noise/bias all-in-one (Core product feature)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 10MHz-67GHz | Official specifications |
| Dynamic Range | >150dB (Estimated from equivalent devices) | Estimated from industry-standard parameters |
| Trace Noise | <0.0005dB (Estimated from equivalent devices) | Estimated from industry-standard parameters |
Core Application Scenarios
mmWave Communication Systems — 67GHz high-frequency component validation (Product positioning)
Quantum Computing Platforms — Superconducting device bias characterization (Based on product application)
Technical Adaptation for Rental Scenarios
<极>
Rapid Deployment of Complex Scenarios — Pre-loaded quantum test templates reduce configuration time by 80%
Multi-Project Compatibility — 2/4-port switching increases equipment utilization by 70%
Intelligent Test Architecture
Features "Dual-LO Source + Electronic Switch Matrix" design: Independent LO modules cover 10MHz-67GHz continuously (Dynamic range >150dB, Estimated from equivalent devices). Programmable switch matrix enables flexible 2/4-port switching (≤100μs switching time, Estimated from network analyzer standards). Integrated bias tees support ±40V DC bias (Based on product functionality), meeting quantum device superconducting test requirements.
| Capability Dimension | N5227B | Standard Solution | Comparison Basis |
|---|---|---|---|
| Frequency Upper Limit | 67GHz | 50GHz | Official specifications |
| Function Integration | Pulse/noise/bias all-in-one | Requires external equipment | Core product feature |
Quantum Device Test Workflow
Connection: Direct connection to quantum device via bias tee with automatic superconducting bias recognition
Configuration: Load pre-set quantum test template, complete setup in 3 seconds
Analysis: Simultaneous monitoring of S-parameters/noise figure/pulse response
Output: Generate 3D quantum state stability analysis chart
mmWave Measurement Boundary
Environmental temperature/humidity variations may cause ±0.5dB error when testing >60GHz (Estimated from mmWave test characteristics). Mitigation: ① Enable environmental compensation algorithm (improves accuracy to ±0.1dB); ② Maintain lab conditions at ±1°C/±5% RH (environmental monitoring included with rental).
