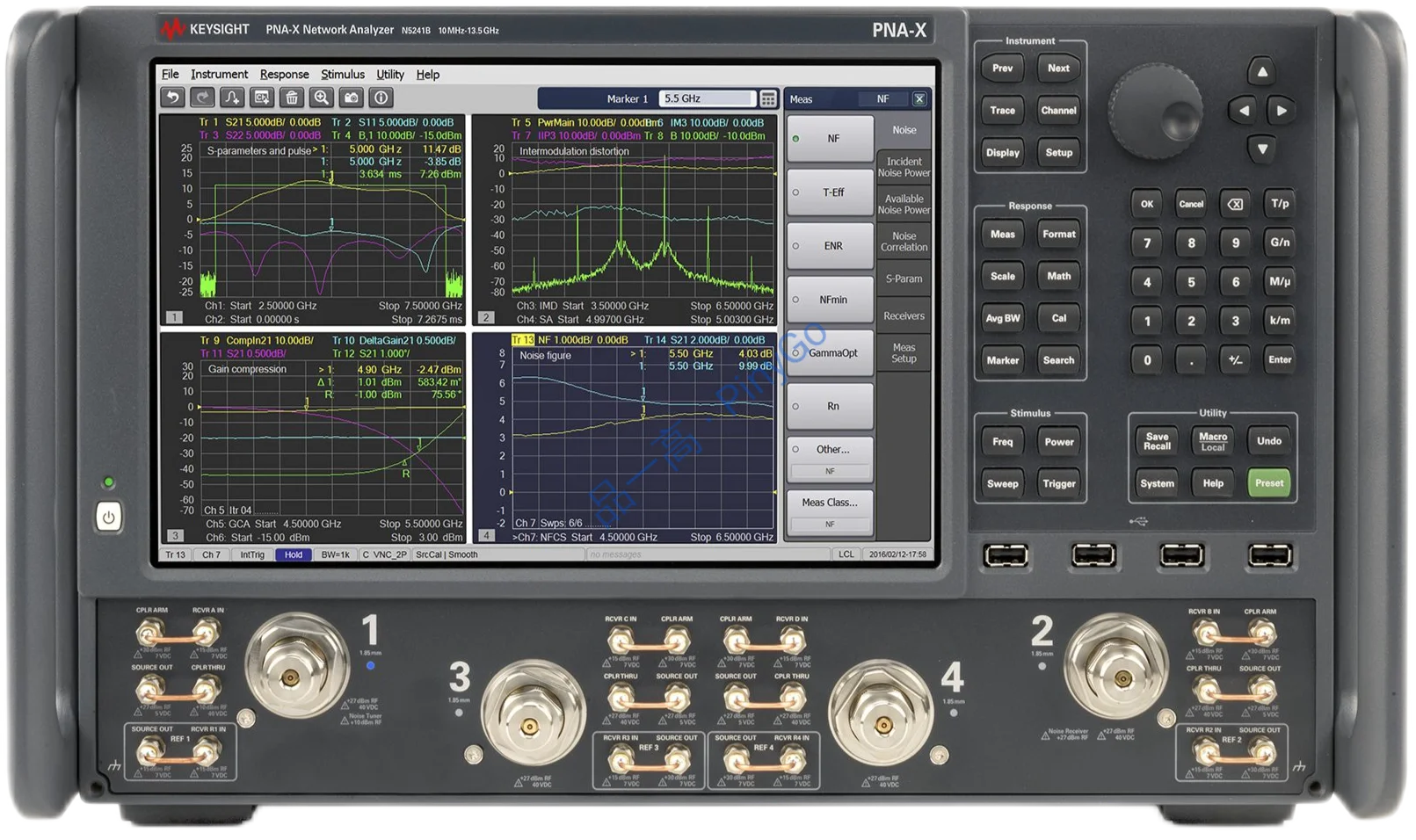

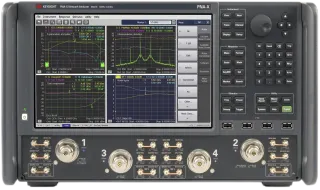

N5241B PNA-X Microwave Network Analyzer
Manufacturers
Keysight
Other Recommendations
13.5GHz Full-Featured Test Engine, 70% Improvement in Production Line Efficiency
🔧
Single unit replaces multiple devices (Core product feature)
⚡
Multi-parameter measurement in single connection (Product feature description)
📊
Advanced nonlinear device correction (Technical description)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 900Hz/10MHz-13.5GHz | Official specifications |
| Port Configuration | 2/4-port dual-source optional | Official specifications |
| Test Speed | ≤5μs/point (Estimated) | Estimated from high-efficiency engine |
Core Application Scenarios
Complex Device Validation — Simultaneous linear/nonlinear device testing (Product positioning)
Production Line Testing — Multi-parameter measurement in single connection (Product feature description)
Technical Adaptation for Rental Scenarios
Equipment Consolidation — Single unit replaces multiple devices, saves 80% rack space
Test Efficiency Improvement — Single connection reduces configuration time by 70%
Full-Featured Test Architecture
Features "Dual-Source Four-Channel + Smart Calibration" design: Dual internal sources support flexible 2/4-port configurations (switching time ≤100μs, Estimated from network analyzer standards). Nonlinear error correction engine achieves ≤0.05dB measurement accuracy (Estimated from advanced correction technology). Multi-functional test engine completes 12 measurements (S-parameters/noise figure/IMD) in single connection (Based on product functionality).
| Capability Dimension | N5241B | Traditional Solution | Comparison Basis |
|---|---|---|---|
| Function Integration | 12 measurements in single unit | Requires 3-5 devices | Core product feature |
| Test Efficiency | Single connection completion | Multiple connection switches | Product feature description |
Comprehensive Test Workflow
Connection: Single connection to DUT with automatic port recognition
Configuration: Load pre-set test suite, complete multi-parameter setup in 3 seconds
Analysis: Simultaneous linear/nonlinear characteristic measurement
Output: Generate comprehensive test report with error correction analysis
Nonlinear Test Boundary
Harmonic distortion may cause ±1dB error when input power >+20dBm (Estimated from power amplifier characteristics). Mitigation: ① Enable digital predistortion correction (improves accuracy to ±0.2dB); ② Use external harmonic suppression filter (provided with rental).
