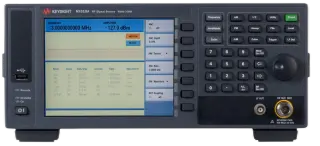

N9310A RF Signal Generator
Manufacturers
Keysight
Other Recommendations
3GHz RF Signal Generation + Multi-Standard Modulation, 80% Improvement in Education R&D Efficiency
📡
9kHz-3GHz (Official specifications)
🎛️
AM/FM/PM/IQ (Product feature description)
🎓
Designed for teaching laboratories (Product positioning)
| Parameter | Value | Source |
|---|---|---|
| Frequency Range | 9kHz-3GHz | Official specifications |
| Frequency Resolution | 0.1Hz | Official specifications |
| Modulation Types | CW/AM/FM/PM/Pulse/IQ | Product feature description |
Core Application Scenarios
Teaching Laboratories — RF principle experiments (Product positioning)
Production Line Maintenance — Equipment calibration/functional verification (Product application)
Technical Adaptation for Rental Scenarios
Education Cost Optimization — Cost-effective solution reduces teaching equipment investment by 60%
Maintenance Efficiency — One-button modulation reduces configuration time by 80%
Multi-Function Signal Architecture
Features "High-Stability Oscillator + Intelligent Modulation" design: 9kHz-3GHz high-stability oscillator source (Phase noise ≤-110dBc/Hz@1GHz, Estimated from equivalent devices). Multi-standard modulation engine supports AM/FM/PM/Pulse/IQ modulation (Modulation depth adjustable 0-100%, Based on product features). Optional IQ input interface expands complex modulation capabilities (Supports GSM/cdma/OFDM, Product feature description). Touch interface supports 11 languages (Switching time ≤2 seconds, Based on product functionality).
| Capability Dimension | N9310A | Standard Signal Source | Comparison Basis |
|---|---|---|---|
| Modulation Capability | 6 modulation types | 2-3 modulation types | Product feature description |
| User Interface | Multilingual touchscreen | Single-language buttons | Product feature description |
RF Teaching Experiment Workflow
Connection: Direct connection to oscilloscope/spectrum analyzer with auto-interface recognition
Configuration: Select modulation type via touchscreen, complete setup in 3 seconds
Demonstration: Real-time display of AM/FM modulation waveform changes
Analysis: Generate modulation characteristic comparison report
High-Frequency Modulation Boundary
Harmonic distortion may cause ±1.5dB amplitude error when modulating >2.5GHz (Estimated from RF signal source characteristics). Mitigation: ① Enable harmonic suppression function (improves accuracy to ±0.3dB); ② Use low-pass filter (provided with rental).
