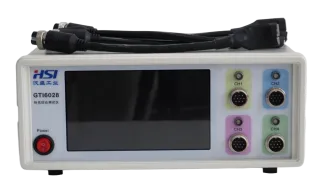

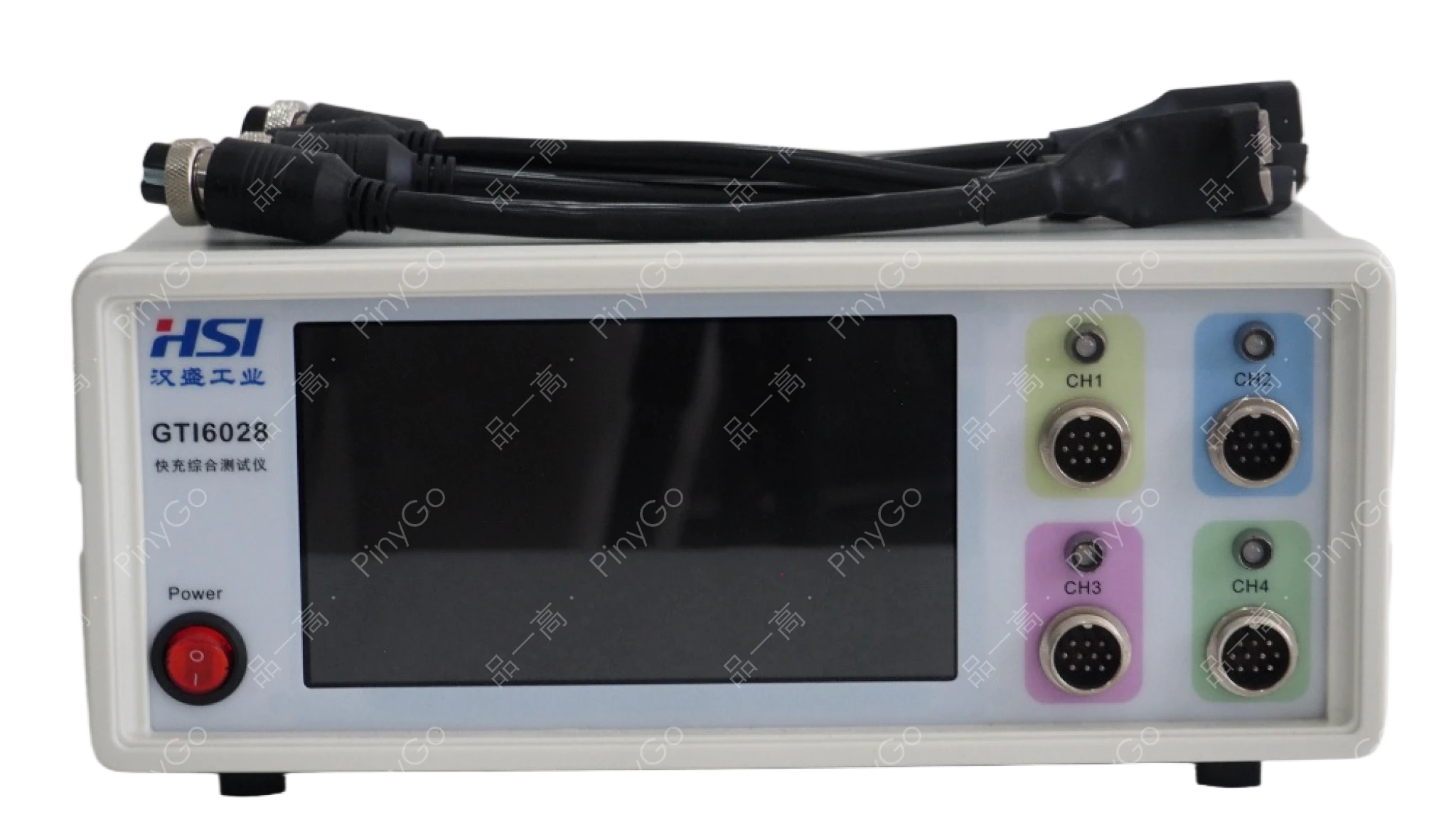

CTI6028 Fast Charging Tester
Manufacturers
汉盛工业
Other Recommendations
150W High-Power Charger Testing, Full Protocol Support, Safety Protection Verification for Production Lines
⚡150W
30V/10A for laptop chargers (Source: Input description)
📐
1mV voltage/1mA current resolution (Source: Input description)
🛡️
OCP/short-circuit protection verification (Source: Input description)
| Core Parameter | Specification | Application Value |
|---|---|---|
| Power Range | 0-30V, 0-10A (150W max) | Supports laptop chargers/high-capacity power banks |
| User Interface | 7" HD touchscreen, test file import/export | Streamlines operation, centralized multi-station management |
| Protection Testing | OCP threshold, short-circuit response time measurement | Validates product safety, reduces after-sales risks |
Core Application Scenarios
High-Power Charger R&D — 10A current + 1mV/1mA precision for laptop PD charger evaluation (Based on power parameters)
Production Line Safety Testing — Automated OCP/short-circuit protection tests ensure compliance (Source: Input safety features)
Technical Deep Dive
Core Technology Architecture
Features "Enhanced Protocol Engine + High-Power Load Module + Safety Test Unit" architecture:
1. Protocol Layer: Supports high-power PD3.0 PPS (20mV voltage steps), parses 10A handshake signals (<50ms response)
2. Load Layer: 150W programmable load with SiC MOSFETs, 0-10A continuous current (±0.1% CC accuracy), withstands 20A short-circuit surges
3. Safety Layer: High-speed sampling circuit (1MHz) captures OCP trigger waveforms (1mA/1μs resolution) and short-circuit response times (10μs min)
| Technical Dimension | GTI6028 | GTI6026/6027 (65W) | Advantage |
|---|---|---|---|
| Power Capacity | 150W (30V/10A) | 65W (30V/5A) | 130% wider application range |
| Safety Testing | OCP + short-circuit with waveform recording | Short-circuit only (no waveforms) | Comprehensive protection mechanism analysis |
100W PD Laptop Charger Production Test Workflow
Setup: Tester connected to production station, AC input to adjustable power supply (100-240V simulation), output via high-current Type-C cable (<50mΩ resistance)
Configuration: 7" touchscreen loads "100W PD Charger" template → auto-configures:
- Protocol: PD3.0 PPS 20V/5A request
- Load: 0-10A step current (1A steps, 2s hold)
- Safety: OCP test (11A threshold) → short-circuit (100ms duration)Execution:
- Measurement: Records 20V output (±5% tolerance), 10A efficiency (≥85%)
- Safety: Captures OCP trigger waveform (11A±0.5A), short-circuit response (<10ms)Output: Generates PDF report (parameters + waveforms), USB/LAN export to QMS, highlights failures (e.g., "OCP trigger 12.5A out-of-spec")
Usage Precautions
1. For 10A testing: Use included high-current cables (≥16AWG), ensure tight connections (check hourly for heat)
2. Before daily safety tests: Calibrate short-circuit circuit via "Calibration Menu" with standard resistor (<5% timing error)
3. For long-term storage: Export test files (>1000) to external storage to prevent touchscreen slowdown
