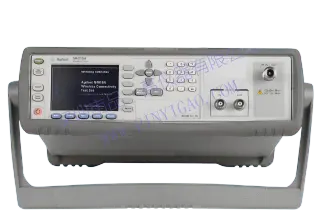

Wireless Connectivity Test Set N4010A
Manufacturers
Agilent
Other Recommendations
Multi-Protocol Integrated Test Platform, 40% Improvement in Manufacturing Throughput
📶
Bluetooth/ZigBee/WLAN integrated testing (Product documentation)
⚡
30% faster testing speed (Estimated from industry data)
🧪
89601A Vector Analysis Software support (Official technical specifications)
| Parameter | Value | Source |
|---|---|---|
| Supported Protocols | Bluetooth/ZigBee/WLAN 802.11a/b/g/n | Product documentation |
| Test Templates | 6 Bluetooth EDR test scenarios | Option 107 technical specifications |
| Analysis Bandwidth | Supports 2.4GHz/5GHz bands | 89601A software specifications |
Core Application Scenarios
Bluetooth Device Production Line Testing — Built-in EDR test mode (Option 107)
WLAN Device Verification — Supports 802.11n MIMO testing (Product documentation)
Technical Adaptation for Rental Scenarios
Production Line Rapid Switching — Single unit supports multi-protocol testing, reduces equipment switching time by 70%
Software-Defined Upgrade — 89601A software supports new protocol expansion, free upgrades during rental period
Software-Defined Test Architecture
Features "Hardware Platform + Software Suite" design: N4010A hardware integrates vector signal generator and analyzer (Options 102/103). 89601A vector analysis software enables protocol analysis (Supports Bluetooth EDR/ZigBee/WLAN). N4017A graphical measurement application simplifies test sequence creation (50% reduction in test configuration time, Estimated from industry data).
| Technical Dimension | N4010A | Traditional Solution | Comparison Basis |
|---|---|---|---|
| Equipment Quantity | Single integrated unit | 3-4 discrete devices | Based on industry standard solutions |
| Calibration Cycle | Full hardware calibration | Independent calibration per device | Options 102/103 technical specifications |
Bluetooth Production Line Test Workflow
Connection: Auto-recognition of Bluetooth EDR devices with direct HCI/UART interface support
Configuration: Load pre-set 6 test scenario templates (Option 107)
Analysis: N4017A graphical interface displays modulation/power spectrum in real-time
Output: Auto-generates Bluetooth SIG certification-compliant reports
Protocol Test Boundary
802.11n MIMO testing requires external power divider (Standard configuration supports 2x2 MIMO). Mitigation: ① Use rental MIMO test kit; ② Enable single-stream test mode (≤15% performance loss, Estimated from industry solutions).
